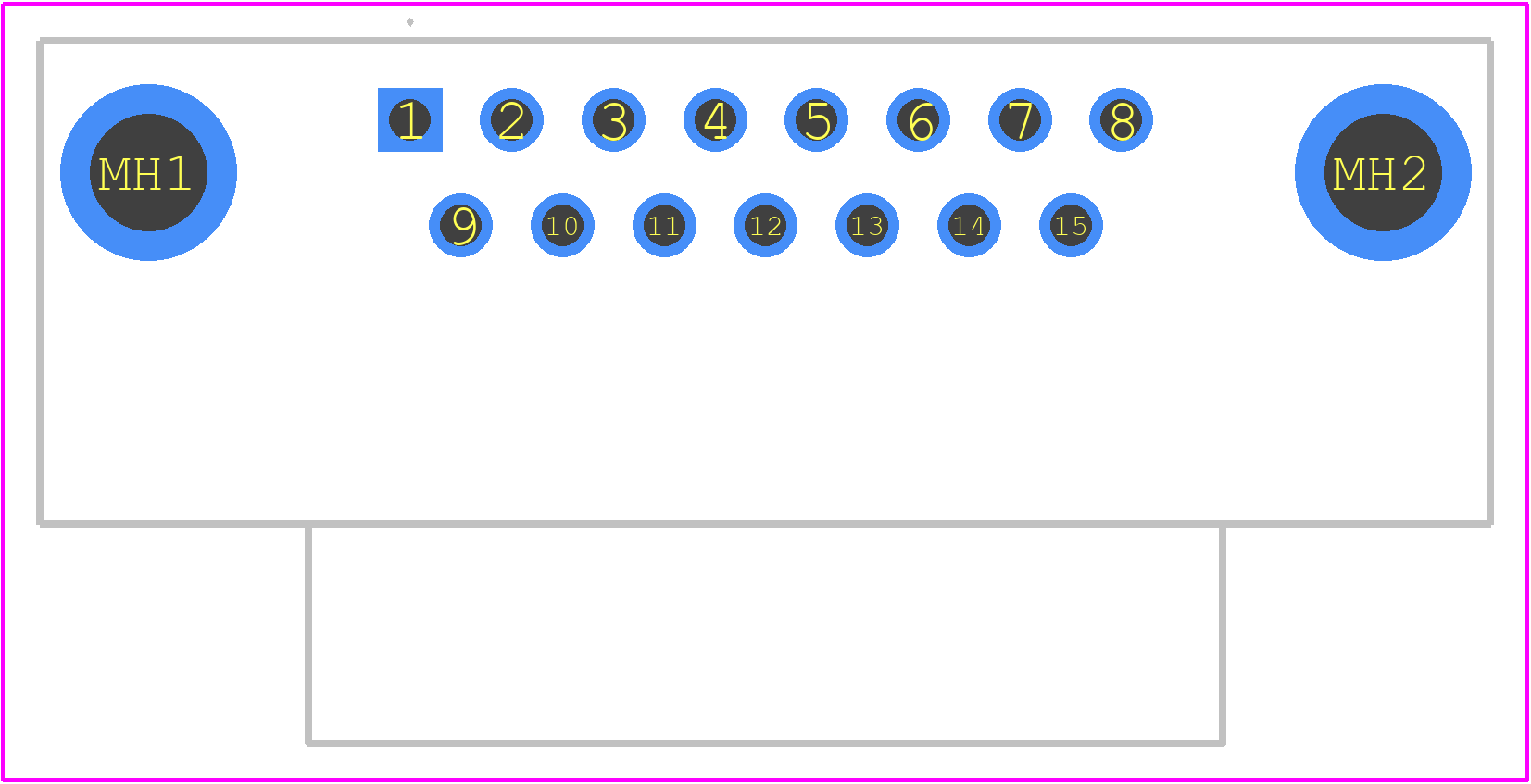

1218441-2 - TE Connectivity

1218441-2 Details

• Manufacturer Part Number:

  1218441-2

• Brand Name:

  AMP

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  23 Weeks, 2 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  8.18

• Additional Feature:

  AMPLIMITE, STANDARD: MIL-C-24308

• Body Breadth:

  0.509 inch

• Body Depth:

  0.534 inch

• Body Length:

  1.556 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  MALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  STAGGERED

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulator Color:

  BLACK

• Insulator Material:

  POLYPHENYLENE SULPHIDE

• MIL Conformance:

  NO

• Mains Connector Rating:

  5A

• Mating Contact Pitch:

  0.109 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.8448 mm

• Panel Mount:

  NO

• Plating Thickness:

  50u inch

• Rated Current (Signal):

  5 A

• Shell Finish:

  CADMIUM

• Shell Material:

  STEEL

• Shell Size:

  2/A

• Terminal Length:

  0.156 inch

• Terminal Pitch:

  2.77 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  15
