Part Image

12226-5150-00FR - 3M

Description: D-Sub Micro-D Connectors 0.8mm 26P R/A RECEPT THRU HOLE 30u GOLD

Download 12226-5150-00FR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
12226-5150-00FR - 3M - PCB symbol
click to zoom
PCB Footprints

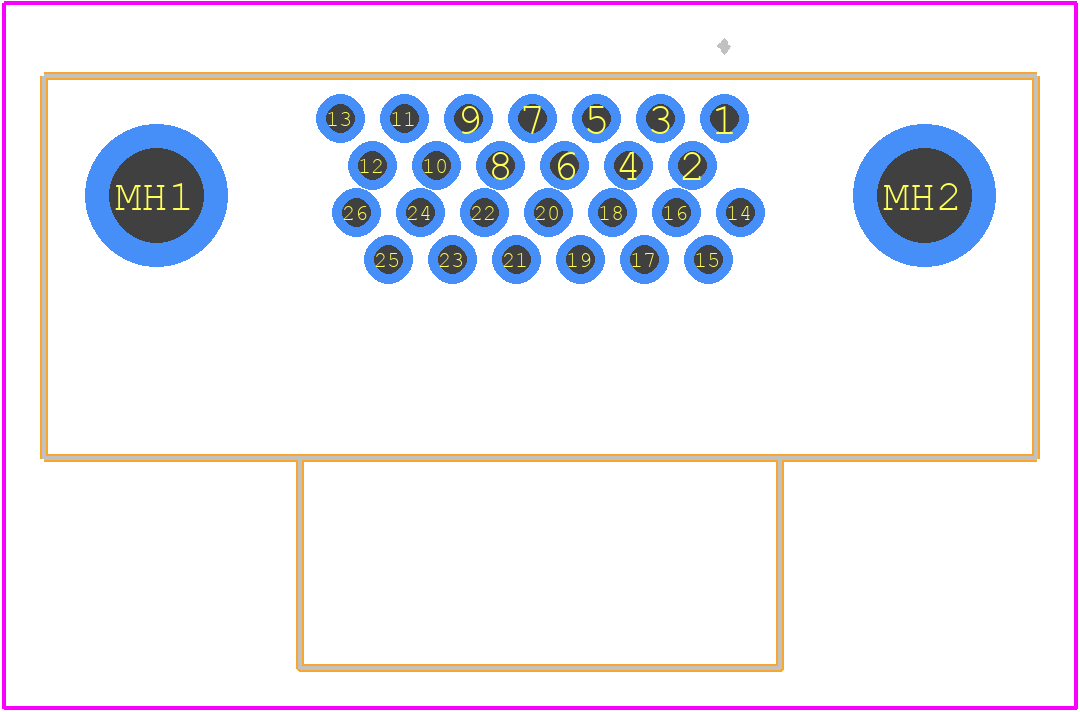

12226-5150-00FR - 3M PCB footprint - Other - Other - 12226-5150-00FR-1
click to zoom
3D Models
12226-5150-00FR - 3M - 3D model - Other - 12226-5150-00FR-1
click to zoom

12226-5150-00FR Details

  • Manufacturer Part Number:

    12226-5150-00FR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    6.8

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

12226-5150-00FR Frequently Asked Questions (FAQs)

  • The recommended torque specification for the 12226-5150-00FR connector is 0.5-1.5 Nm (4-12 in-lbs) for the screw locks, and 0.25-0.5 Nm (2-4 in-lbs) for the jackscrew.
  • Yes, the 12226-5150-00FR connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the 12226-5150-00FR connector is designed to operate in harsh environments, with an operating temperature range of -55°C to 125°C and a humidity rating of 95% RH at 40°C.
  • The 12226-5150-00FR connector has a mating cycle life of 500 cycles minimum, with a maximum of 1000 cycles.
  • Yes, the 12226-5150-00FR connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

12226-5150-00FR Overview

Use the download button to access the 12226-5150-00FR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 12226, or try a keyword search, such as Telecom and Datacom Connectors
