12226-8250-00PL - 3M

Description: D-Sub Micro-D Connectors 0.8mm 26P R/A RECEPT

Download 12226-8250-00PL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

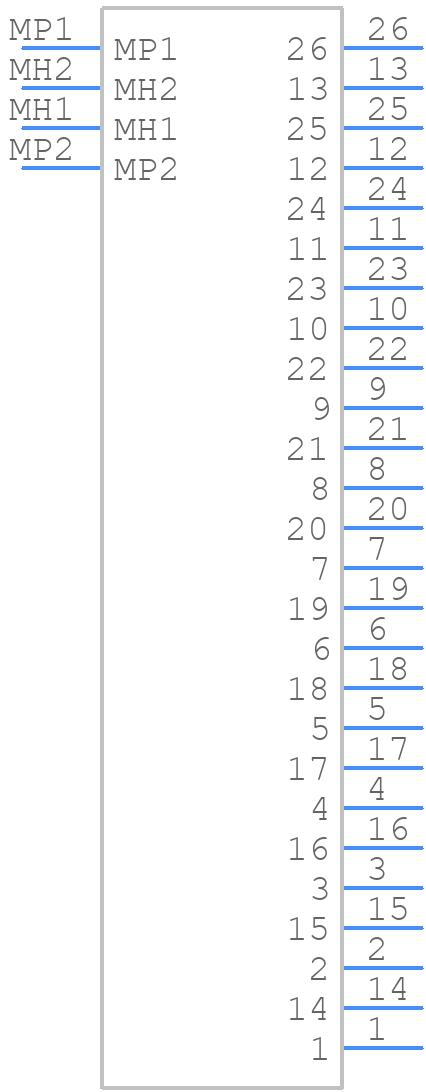

12226-8250-00PL - 3M - PCB symbol
click to zoom
PCB Footprints

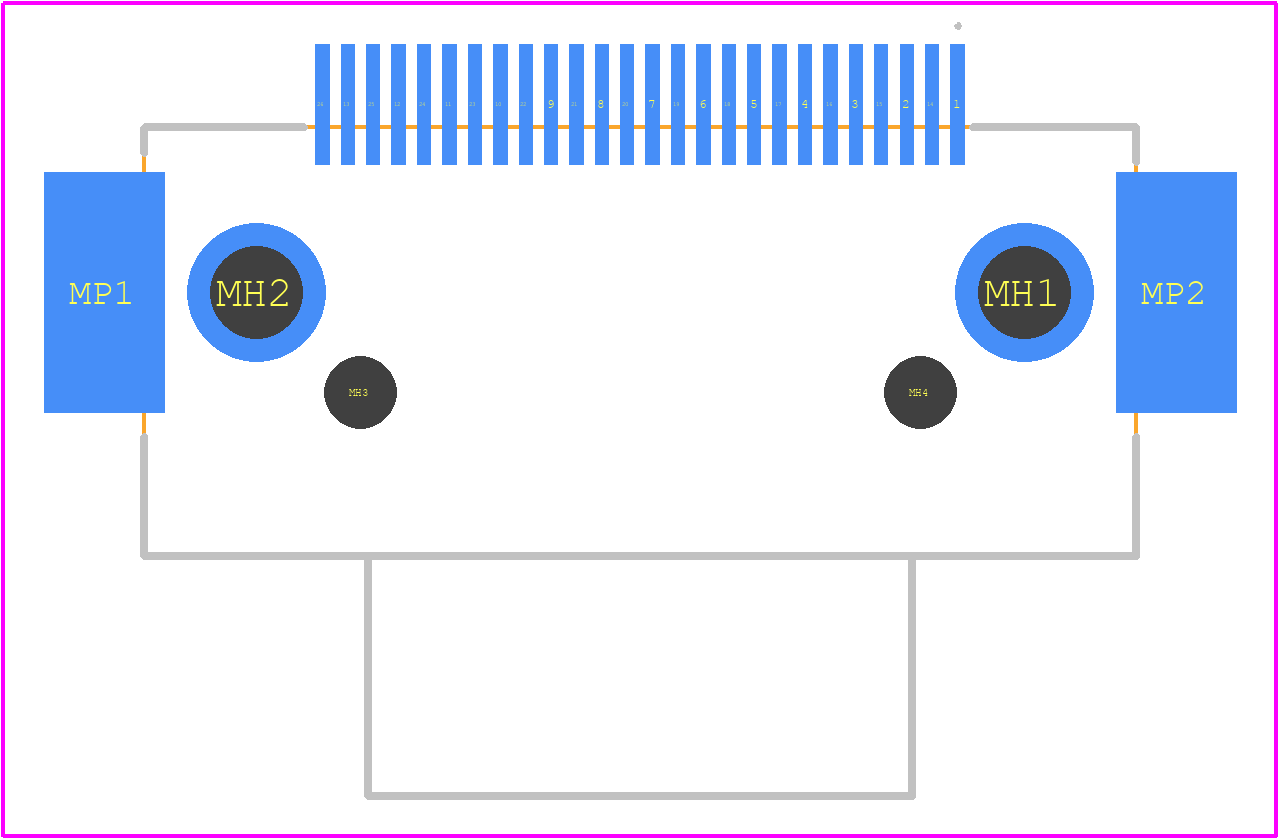

12226-8250-00PL - 3M PCB footprint - Other - Other - 12226-8250-00PL-1
click to zoom
3D Models
12226-8250-00PL - 3M - 3D model - Other - 12226-8250-00PL-1
click to zoom

12226-8250-00PL Details

  • Manufacturer Part Number:

    12226-8250-00PL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    31 Weeks, 1 Day

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    7

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

12226-8250-00PL Frequently Asked Questions (FAQs)

  • The recommended torque specification for the 12226-8250-00PL connector is 0.5-1.5 Nm (4-12 in-lbs) for the screw locks, and 0.25-0.5 Nm (2-4 in-lbs) for the jackscrew.
  • Yes, the 12226-8250-00PL connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • The operating temperature range of the 12226-8250-00PL connector is -55°C to 125°C (-65°F to 257°F).
  • Yes, the 12226-8250-00PL connector is designed to withstand harsh environments, including high humidity and salt spray, with a tested salt spray resistance of 48 hours.
  • The mating cycle life of the 12226-8250-00PL connector is rated for a minimum of 500 mating cycles.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

12226-8250-00PL Overview

Use the download button to access the 12226-8250-00PL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 12226, or try a keyword search, such as Telecom and Datacom Connectors
