12250-5150-00FR footprint, schematic symbol and 3D model by 3M

Symbol

click to zoom

PCB Footprints

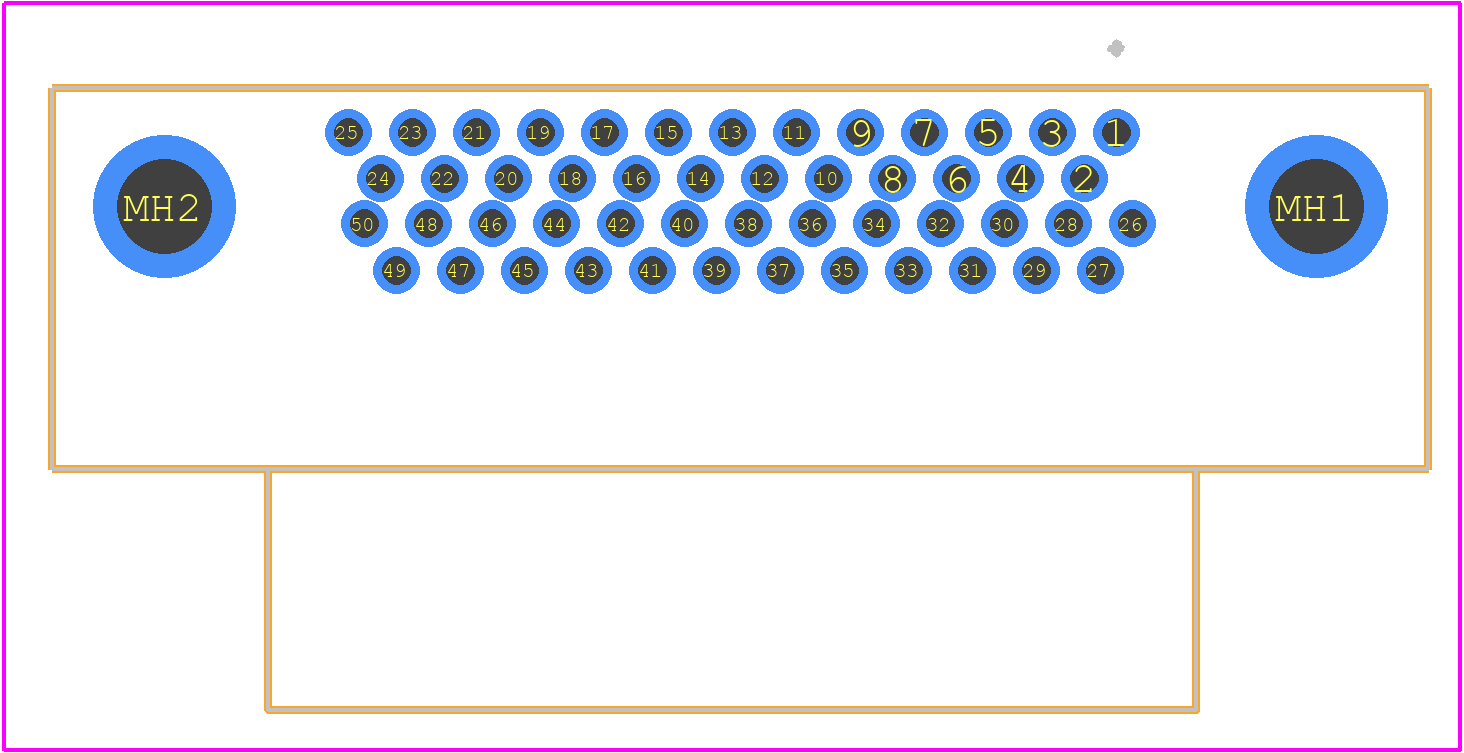

12250-5150-00FR - 3M PCB footprint - Other - Other - 12250-5150-00FR-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 12250-5150-00FR
Part Number 12250-5150-00FR
Manufacturer 3M
Pin Count 999
Part Category Connector
Package Category Other
Footprint Name Other - 12250-5150-00FR-4
Released Date Jul 12, 2020
Last Modified Date Jun 10, 2026 12:21 PM UTC
Pinout / Pin List Click Here (Member Only)

12250-5150-00FR Details

Manufacturer Part Number:
12250-5150-00FR
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
31 Weeks, 1 Day
Manufacturer:
3M Interconnect
YTEOL:
6.8
Connector Type:
RIBBON D CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Material:
COPPER ALLOY
DIN Conformance:
NO
IEC Conformance:
NO
MIL Conformance:
NO

12250-5150-00FR Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-1.5 Nm (4.4-13.4 in-lbs) for the screw terminals.
Yes, the 12250-5150-00FR is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
Yes, the connector is designed to meet IP67 standards, making it suitable for outdoor use and exposure to moisture and dust.
The maximum operating temperature for the 12250-5150-00FR is 125°C (257°F).
No, the connector is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

Expert Contribution

System Verified

Community Approved

12250-5150-00FR Overview

Use the download button to access the 12250-5150-00FR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 12250, or try a keyword search, such as Telecom and Datacom Connectors
