122A13119X - CONEC

122A13119X Details

• Manufacturer Part Number:

  122A13119X

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Conec Corporation

• YTEOL:

  0

• Additional Feature:

  ROHS COMPLIANT

• Body Breadth:

  0.618 inch

• Body Depth:

  0.453 inch

• Body Length:

  3.74 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD EURO CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  Gold (Au) over Nickel (Ni)

• Contact Gender:

  FEMALE

• Contact Material:

  COPPER ALLOY

• Contact Resistance:

  15 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  YES

• Durability:

  50 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  1.39 N

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTHALATE

• Mating Contact Pitch:

  0.2 inch

• Mating Contact Row Spacing:

  0.2 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  HOLE .099-.111

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Name of Rows Loaded:

  A,C,E

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  3

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

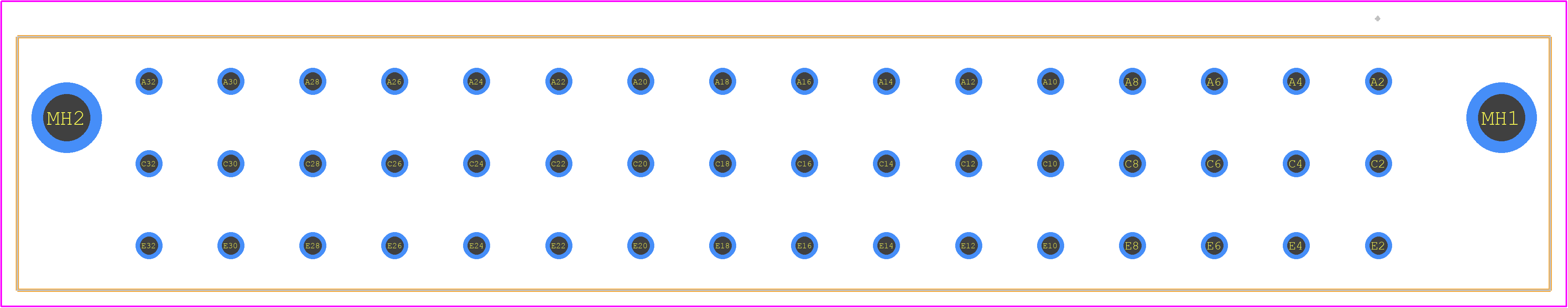

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  5.08 mm

• Rated Current (Signal):

  5.5 A

• Reference Standard:

  UL

• Terminal Length:

  0.181 inch

• Terminal Pitch:

  5.08 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  48
