1230-002D-3N - TE Connectivity

Description: Board Mount Pressure Sensors 0-002psid 0-100mV None Port

Download 1230-002D-3N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

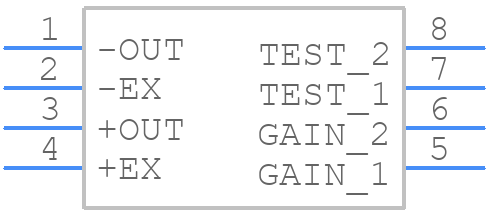

Symbol
1230-002D-3N - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
1230-002D-3N - TE Connectivity PCB footprint - Other - Other - 1230-002D-3N-3
click to zoom
3D Models
1230-002D-3N - TE Connectivity - 3D model - Other - 1230-002D-3N-3
click to zoom

1230-002D-3N Details

  • Manufacturer Part Number:

    1230-002D-3N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    15.24 mm

  • Body Length or Diameter:

    15.24 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Current-Max:

    2 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0-100mV

  • Output Type:

    VOLTAGE OUTPUT

  • Package Shape/Style:

    SQUARE

  • Pressure Range-Max:

    2 Psi

  • Pressure Sensing Mode:

    DIFFERENTIAL

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

1230-002D-3N Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 1230-002D-3N is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
  • Yes, the 1230-002D-3N has a rating of IP67 (IEC 60529), which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • The operating temperature range for the 1230-002D-3N is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • Yes, the 1230-002D-3N can accommodate wire sizes from 20 AWG to 28 AWG, but the recommended wire size is 24 AWG for optimal performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1230-002D-3N Overview

Use the download button to access the 1230-002D-3N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1230-, or try a keyword search, such as Pressure Sensors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
