1250410000 - Weidmüller

Description: PCB terminal, 160 V, 17.5 A, Pitch in mm: 3.50, 1.5 mm², Number of poles: 6, PUSH IN with actuator, SMD solder connection, 180°, Tape

Download 1250410000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1250410000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

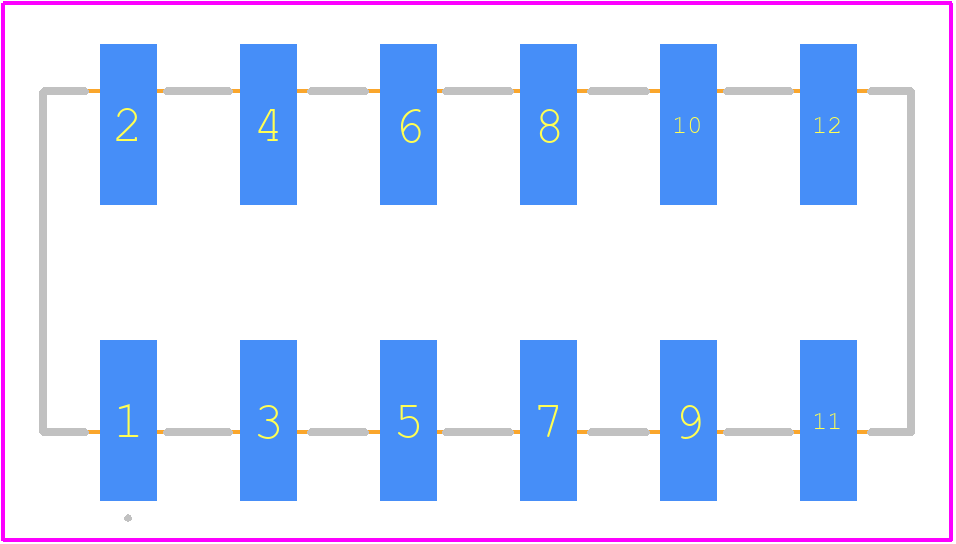

1250410000 - Weidmüller PCB footprint - Other - Other - 1250410000-1
click to zoom
3D Models
1250410000 - Weidmüller - 3D model - Other - 1250410000-1
click to zoom

1250410000 Details

  • Manufacturer Part Number:

    1250410000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.68

  • Additional Feature:

    GLASS FILLED LCP, UL 94V-0

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    12 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; CUL; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1250410000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1250410000 is -40°C to 85°C, according to Weidmüller's documentation.
  • Yes, the 1250410000 is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.
  • The recommended torque for the screw terminals on the 1250410000 is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • The 1250410000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications.
  • The 1250410000 has an IP20 rating, providing protection against solid objects larger than 12 mm and no protection against water.
