1273AS-H-4R7N=P3 - Murata Electronics

1273AS-H-4R7N=P3 Frequently Asked Questions (FAQs)

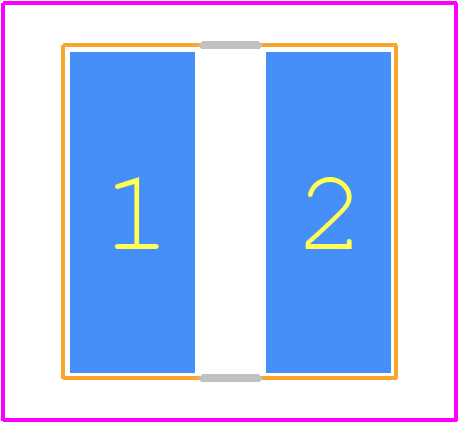

• What is the recommended land pattern for this component?
  The recommended land pattern for the 1273AS-H-4R7N=P3 can be found in the Murata Land Pattern Recommendation document, which provides guidelines for PCB layout and footprint design.
• How do I handle the component during assembly to prevent damage?
  To prevent damage, handle the component by the body, avoid touching the terminals, and use an anti-static wrist strap or mat to prevent electrostatic discharge. Use a vacuum pickup or tweezers to handle the component during assembly.
• What is the maximum allowable voltage derating for this component?
  The maximum allowable voltage derating for the 1273AS-H-4R7N=P3 is 80% of the rated voltage, as specified in the datasheet. Exceeding this derating may affect the component's reliability and lifespan.
• Can I use this component in a high-temperature environment?
  The 1273AS-H-4R7N=P3 is rated for operation up to 125°C. However, it's essential to consider the component's temperature coefficient and derating factors when operating in high-temperature environments to ensure reliable performance.
• What is the recommended soldering profile for this component?
  The recommended soldering profile for the 1273AS-H-4R7N=P3 follows the JEDEC J-STD-020 standard, with a peak temperature of 260°C and a dwell time of 10-30 seconds. Consult the datasheet and Murata's soldering guidelines for more information.
