Part Image

1289550000 - Weidmüller

Description: PCB connector (board connection), 160 V, 13.4 A, Pitch in mm: 3.50, Number of poles: 24, THT/THR solder connection, Box

Download 1289550000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1289550000 - Weidmüller - PCB symbol
click to zoom

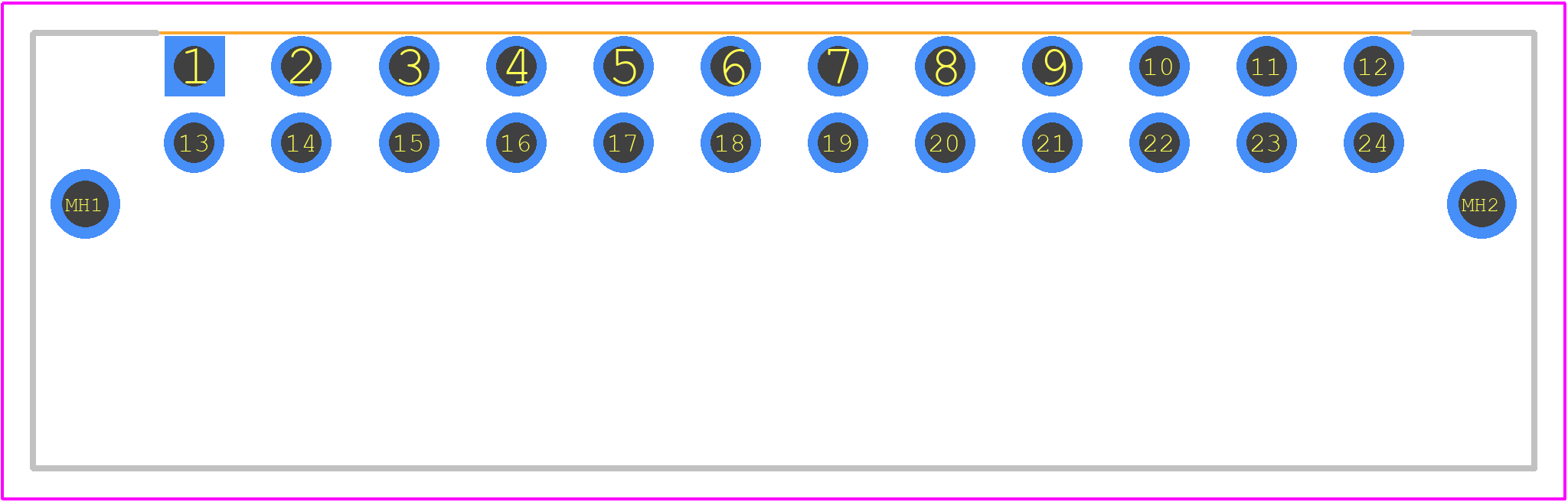

PCB Footprints
1289550000 - Weidmüller PCB footprint - Other - Other - 1289550000
click to zoom
3D Models
1289550000 - Weidmüller - 3D model - Other - 1289550000
click to zoom

1289550000 Details

  • Manufacturer Part Number:

    1289550000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: GLASS FILLED LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    2

  • Number of Ways:

    24

  • Rated Current:

    10 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    CUL; IEC; UL

  • Terminal Gender:

    FEMALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

1289550000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1289550000 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1289550000 connector is designed to withstand vibration and shock according to IEC 61373 Category II, making it suitable for use in harsh industrial environments.
  • The 1289550000 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • The 1289550000 connector is not intended for use in explosive atmospheres. If you need a connector for use in hazardous locations, you should consider a different product that meets the relevant standards, such as ATEX or IECEx.
  • The recommended torque for the screw terminals on the 1289550000 connector is 0.5 Nm to 1.5 Nm. It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1289550000 Overview

Use the download button to access the 1289550000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 12895, or try a keyword search, such as Terminals and Terminal Blocks
