The recommended operating temperature range for the 1293Q16-U is -40°C to +85°C.
To properly terminate the differential outputs, use a 100Ω differential termination resistor (e.g., 2 x 50Ω resistors in series) between the output pins and the receiving device.
The maximum input signal amplitude that the 1293Q16-U can handle is ±2.5V peak-to-peak differential signal.
While the 1293Q16-U is designed for differential signaling, it can be used in a single-ended configuration with some limitations. However, this is not recommended as it may compromise the device's performance and noise immunity.
To ensure proper power supply decoupling, use a 10μF ceramic capacitor in parallel with a 100nF ceramic capacitor, both connected between the VCC pin and GND, as close to the device as possible.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1293Q16-U Overview

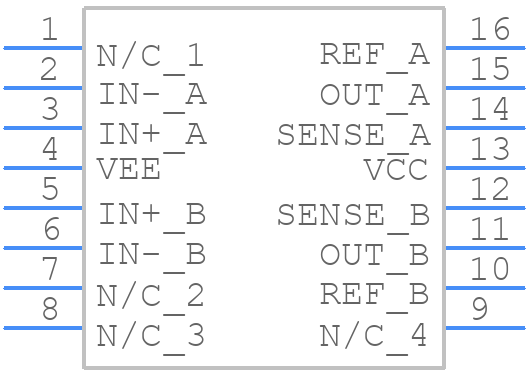

Use the download button to access the 1293Q16-U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1293Q,
or try a keyword search, such as Line Driver or Receivers
