The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and application.
Yes, the 13-000011 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial automation, transportation, and aerospace.
Yes, the 13-000011 connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
The mating cycle life of the 13-000011 connector is rated for a minimum of 500 mating cycles, ensuring reliable connections over an extended period.
Yes, the 13-000011 connector is designed to be compatible with other Conec Corporation products, including cable assemblies, adapters, and connectors, ensuring a comprehensive connectivity solution.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
13-000011 Overview

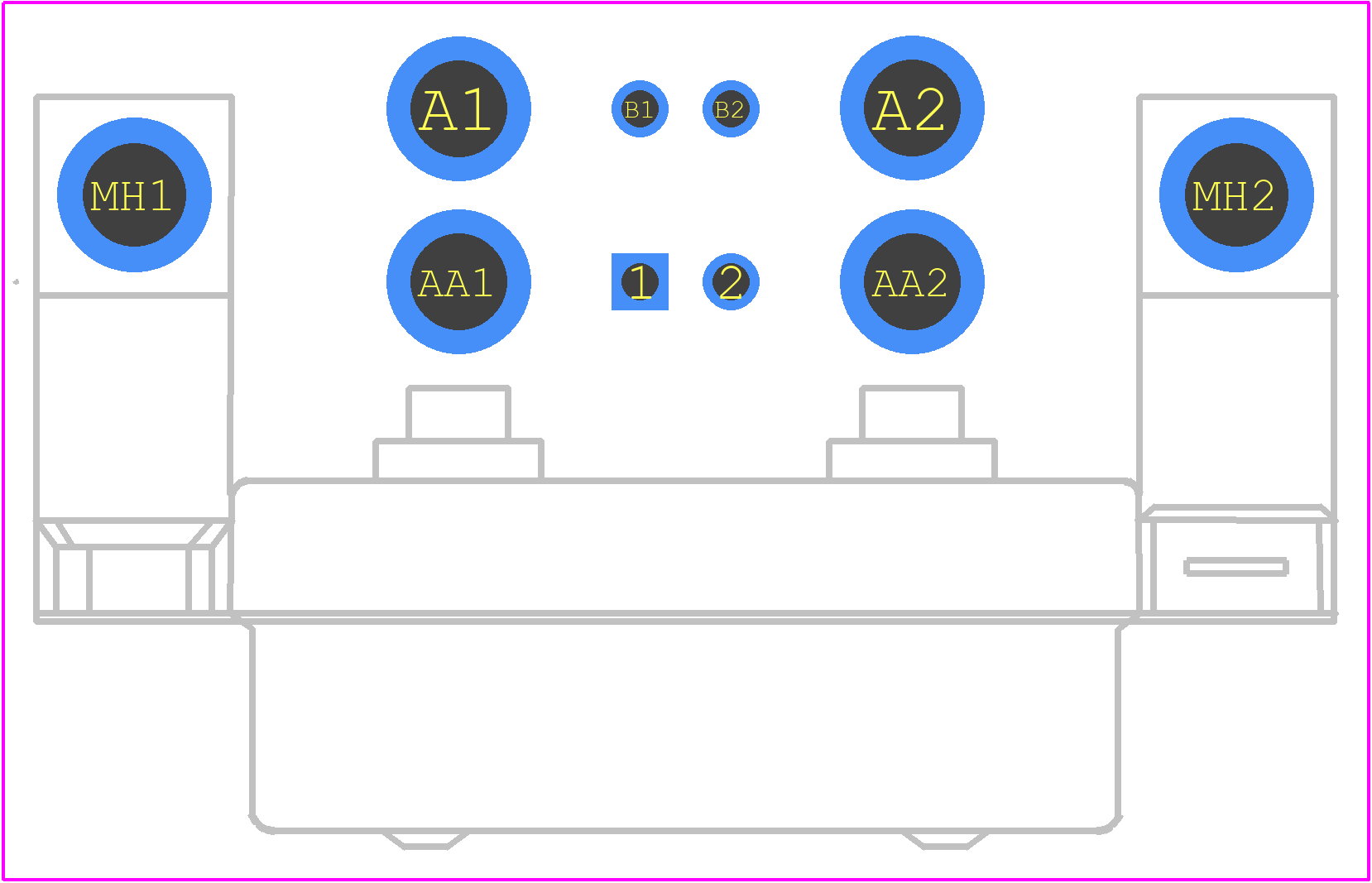

Use the download button to access the 13-000011 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 13-00,
or try a keyword search, such as D Type Connectors
