The recommended torque is typically specified in the manufacturer's application notes or installation instructions, but a general guideline is to use 0.5-1.5 Nm (7-21 in-lbs) of torque to ensure secure fastening without damaging the connector or panel.
Yes, the 131-3801-231 connector is designed to withstand vibration and shock according to industry standards such as IEC 61373. However, it's essential to ensure proper installation, screw torque, and cable strain relief to maintain the connector's integrity in high-vibration environments.
The 131-3801-231 connector has a IP67 rating, which means it can withstand temporary immersion in water and exposure to dust. However, for outdoor or harsh environmental applications, additional protection measures such as conformal coating, potting, or sealing may be necessary to ensure the connector's reliability and longevity.
The 131-3801-231 connector is designed for specific cable types and sizes. While it may be possible to use it with other cables, it's essential to consult with the manufacturer or a qualified engineer to ensure compatibility, signal integrity, and mechanical reliability.
The 131-3801-231 connector is typically rated for operation in temperatures ranging from -40°C to 105°C (-40°F to 221°F). However, it's essential to consult the datasheet or manufacturer's documentation for specific temperature ratings and any applicable derating factors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
131-3801-231 Overview

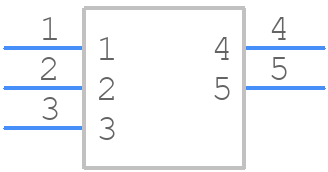

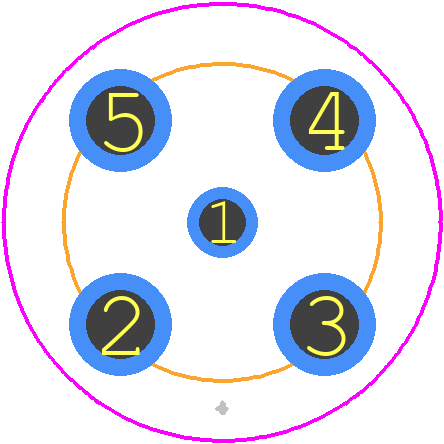

Use the download button to access the 131-3801-231 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 131-3,
or try a keyword search, such as RF SMB/SSMB Connectors
