132144 - Amphenol

Description: CONN SMA PLUG STR 50 OHM SOLDER

Download 132144 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
132144 - Amphenol - PCB symbol
click to zoom
PCB Footprints

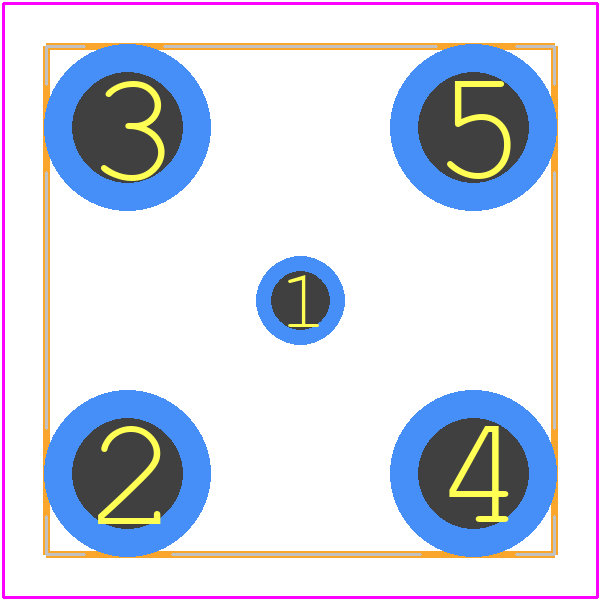

132144 - Amphenol PCB footprint - Other - Other - 132144-1
click to zoom
3D Models
132144 - Amphenol - 3D model - Other - 132144-1
click to zoom

132144 Details

  • Manufacturer Part Number:

    132144

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: MIL-C-39012

  • Body/Shell Style:

    PLUG

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF SMA CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    MALE

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYTETRAFLUOROETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Style:

    STRAIGHT

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    YES

  • Termination Type:

    SOLDER

132144 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 132144 connector is designed to withstand high-vibration environments and meets the requirements of MIL-DTL-5015.
  • The operating temperature range for the 132144 connector is -55°C to 125°C (-65°F to 257°F).
  • Yes, the 132144 connector is designed to be resistant to corrosion and can withstand exposure to harsh environments, including high humidity and certain chemicals.
  • Yes, the 132144 connector is designed to be used with a cable assembly, and Amphenol Corporation offers a range of cable assembly options for this connector.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

132144 Overview

Use the download button to access the 132144 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 13214, or try a keyword search, such as RF SMA/SSMA Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
