Technical Content
Part Image

1330530000 - Weidmüller

Description: PCB terminal, 320 V, 24 A, Pitch in mm: 5.00, 2.5 mm², Number of poles: 10, PUSH IN, THT solder connection, 180°, Box

Download 1330530000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

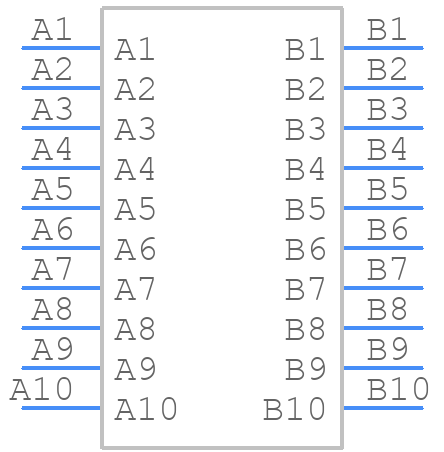

1330530000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

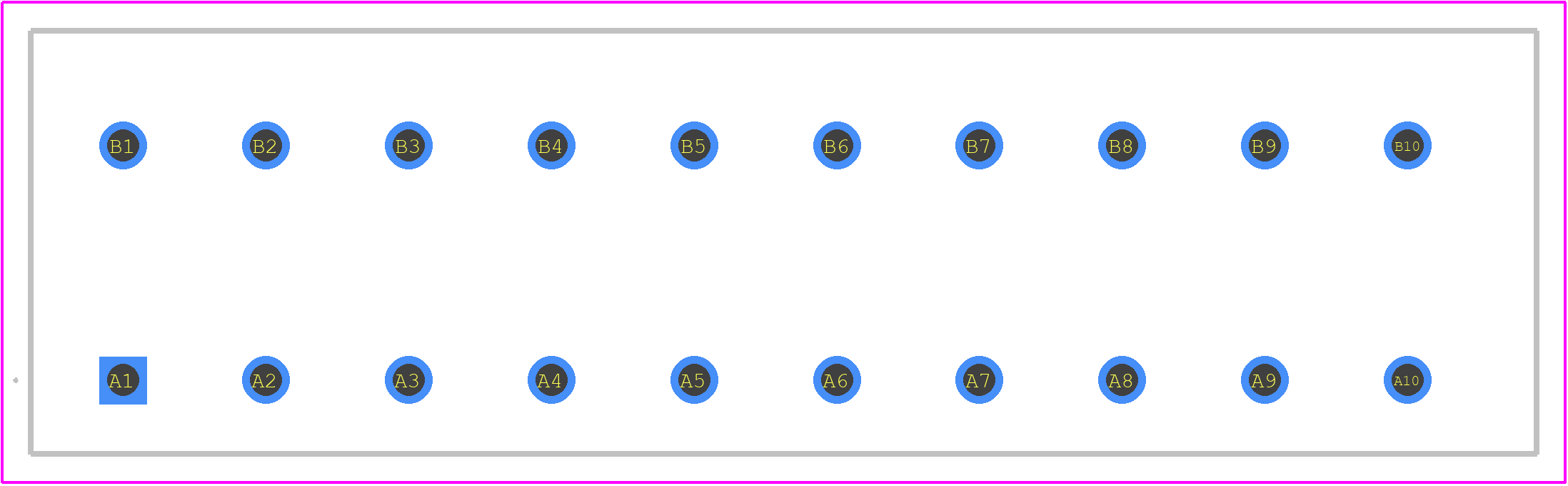

1330530000 - Weidmüller PCB footprint - Other - Other - 1330530000-1
click to zoom
3D Models
1330530000 - Weidmüller - 3D model - Other - 1330530000-1
click to zoom

1330530000 Details

  • Manufacturer Part Number:

    1330530000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1330530000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1330530000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1330530000 is designed for DIN rail mounting, making it easy to install and integrate into existing systems.
  • The maximum current rating of the 1330530000 is 10A per contact, making it suitable for use in applications that require high current handling.
  • Yes, the 1330530000 is RoHS and REACH compliant, making it suitable for use in applications that require compliance with these regulations.
  • The 1330530000 is typically used in industrial automation, process control, and power distribution applications, where reliable and secure connections are required.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1330530000 Overview

Use the download button to access the 1330530000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 13305, or try a keyword search, such as Terminals and Terminal Blocks
