134D506X9125F6E3 - Vishay

Description: Wet Tantalum HI-TMP® Capacitors Tantalum Case With Glass-to-Tantalum Hermetic Seal for -55 °C to +200 °C Operatio

Download 134D506X9125F6E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
134D506X9125F6E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

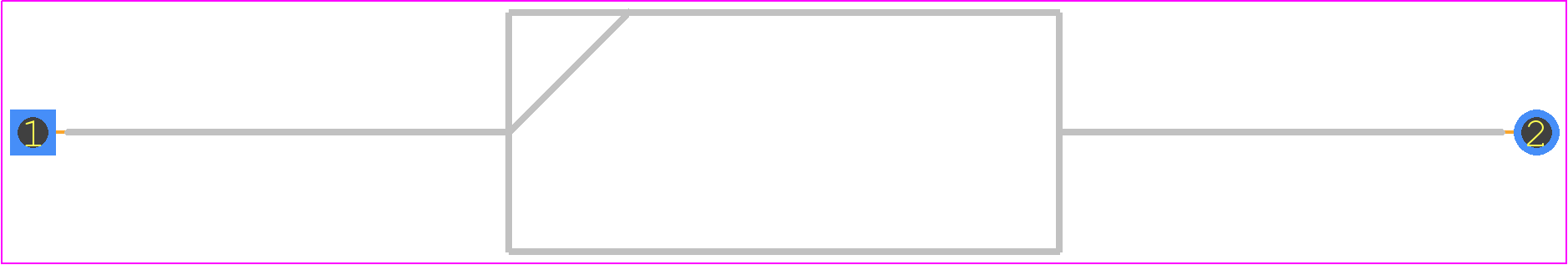

134D506X9125F6E3 - Vishay PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 134D506X9125F6E3
click to zoom
3D Models
134D506X9125F6E3 - Vishay - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 134D506X9125F6E3
click to zoom

134D506X9125F6E3 Details

  • Manufacturer Part Number:

    134D506X9125F6E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Israel, USA

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Additional Feature:

    RIPPLE CURRENT IS MEASURED AT 85 DEG CEL

  • Capacitance:

    50 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Diameter:

    7.52 mm

  • Dielectric Material:

    TANTALUM (WET)

  • ESR:

    2300 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.003 mA

  • Length:

    16.28 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    TRAY

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    125 V

  • Ripple Current:

    565.5 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

134D506X9125F6E3 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 134D506X9125F6E3 is between 260°C to 280°C for a maximum of 10 seconds.
  • Yes, the 134D506X9125F6E3 is a high-reliability capacitor designed for demanding applications, including aerospace, defense, and industrial systems.
  • The ESR of the 134D506X9125F6E3 is typically around 10 mohms at 100 kHz, but it's recommended to consult the datasheet or contact Vishay Intertechnologies for the most up-to-date information.
  • Yes, the 134D506X9125F6E3 is designed to withstand high-vibration environments, with a vibration rating of 20 G peak acceleration.
  • Yes, the 134D506X9125F6E3 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally conscious designs.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

134D506X9125F6E3 Overview

Use the download button to access the 134D506X9125F6E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 134D5, or try a keyword search, such as Tantalum Capacitors
