1393310-2 - TE Connectivity

Description: TE CONNECTIVITY - 1393310-2 - VCFM-1000=FROM SEC

Download 1393310-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1393310-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

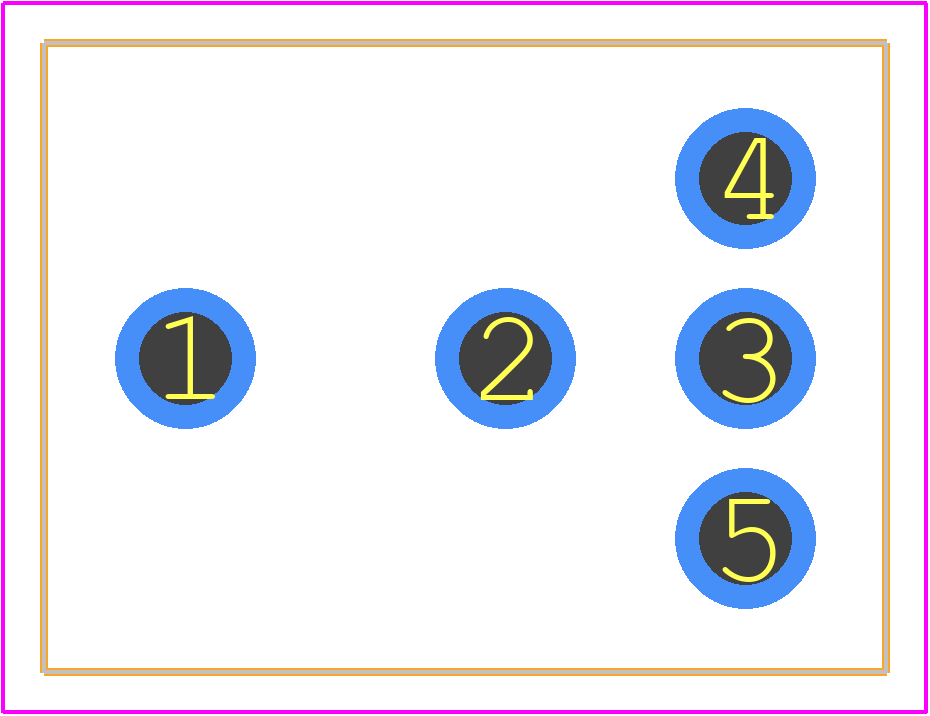

1393310-2 - TE Connectivity PCB footprint - Other - Other - 1393310-2-1
click to zoom
3D Models
1393310-2 - TE Connectivity - 3D model - Other - 1393310-2-1
click to zoom

1393310-2 Details

  • Manufacturer Part Number:

    1393310-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Device Socket Type:

    IC SOCKET

  • Number of Contacts:

    1

  • Termination Type:

    SOLDER
