1415440C - Murata Electronics

Description: Murata 150 μH ±10% Bobbin Inductor, Max SRF:3.4MHz, Q:24, 4A Idc, 0.069Ω Rdc 1400

Download 1415440C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1415440C - Murata Electronics - PCB symbol
click to zoom

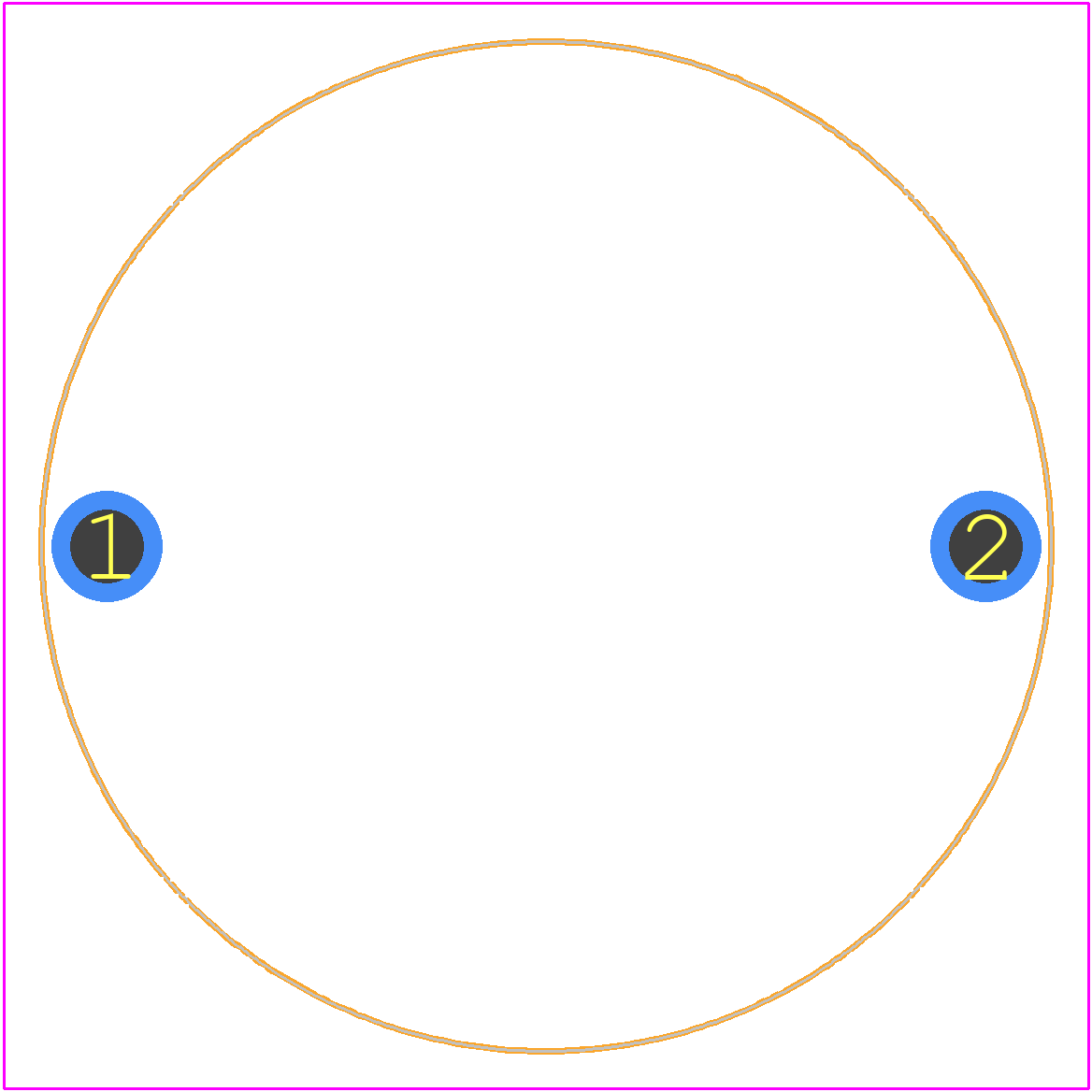

PCB Footprints
1415440C - Murata Electronics PCB footprint - Other - Other - 1400 Series (26.2 1.8)
click to zoom
3D Models
1415440C - Murata Electronics - 3D model - Other - 1400 Series (26.2 1.8)
click to zoom

1415440C Details

  • Manufacturer Part Number:

    1415440C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Construction:

    Bobbin

  • DC Resistance:

    0.069 Ω

  • Inductance-Nom (L):

    150 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.9 mm

  • Lead Length:

    10 mm

  • Lead Spacing:

    23.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    14 mm

  • Package Length:

    26.2 mm

  • Package Style:

    Radial

  • Package Width:

    24.4 mm

  • Packing Method:

    BULK

  • Rated Current-Max:

    4 A

  • Self Resonance Frequency:

    3.4 MHz

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

1415440C Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 1415440C can be found in the Murata Land Pattern Recommendation document, which provides detailed guidelines for PCB layout and footprint design.
  • To prevent moisture-related issues, it's essential to follow proper storage and handling procedures, such as storing the components in a dry environment, using desiccant packaging, and baking the components before reflow soldering.
  • The maximum reflow temperature for the 1415440C is 260°C, as specified in the datasheet. Exceeding this temperature can cause damage to the component.
  • While the 1415440C is designed to be robust, it's essential to evaluate its performance in high-vibration environments. Murata recommends consulting their application notes and performing thorough testing to ensure the component's reliability in such conditions.
  • To troubleshoot issues with the 1415440C, start by consulting the datasheet and application notes. If the problem persists, contact Murata's technical support team or a local distributor for assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1415440C Overview

Use the download button to access the 1415440C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14154, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
