1415465C - Murata Electronics

Description: Murata 150 μH ±10% Bobbin Inductor, Max SRF:2.4MHz, Q:46, 6.5A Idc, 0.042Ω Rdc 1400

Download 1415465C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1415465C - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

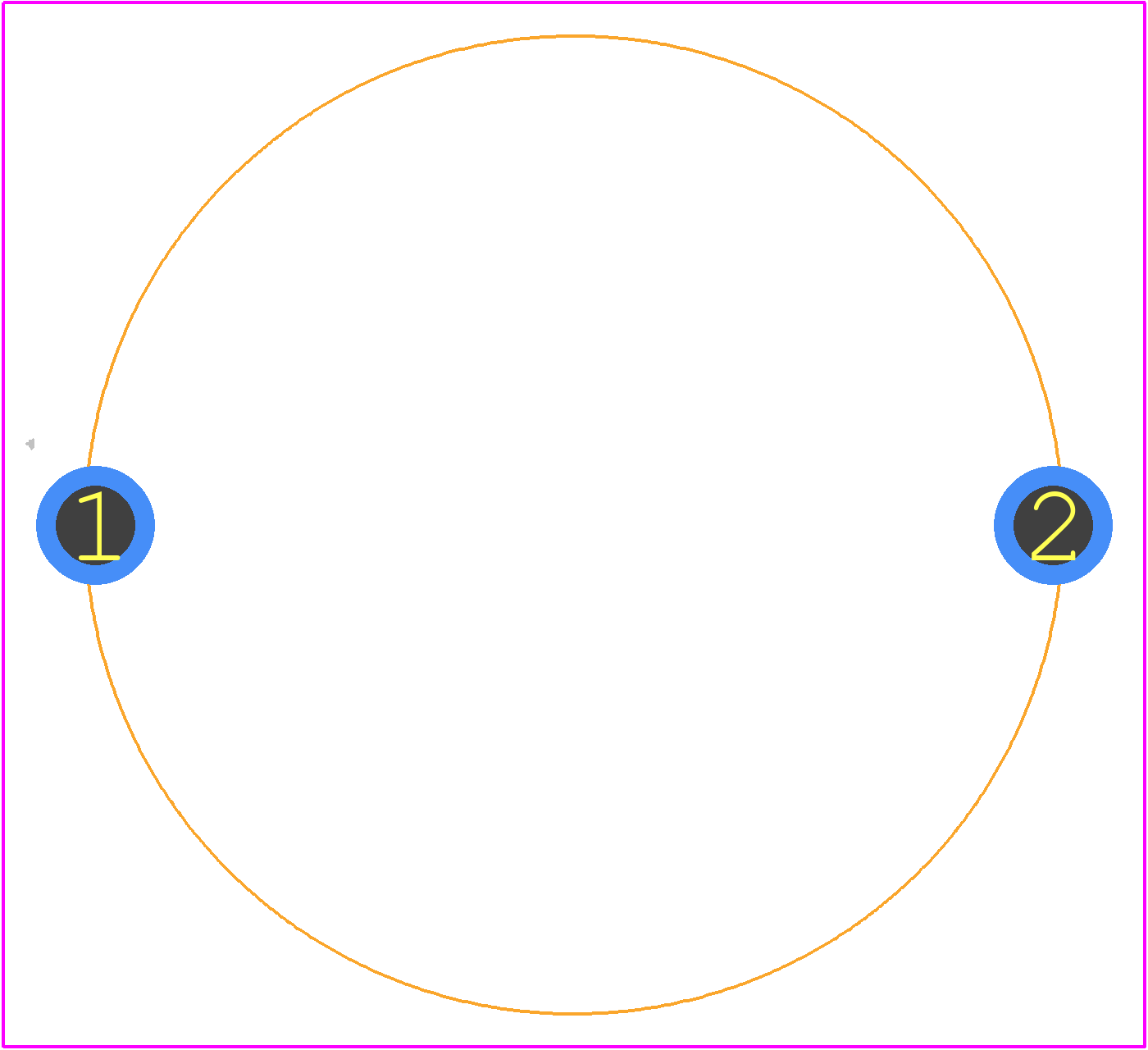

1415465C - Murata Electronics PCB footprint - Other - Other - 1415465C-1
click to zoom
3D Models
1415465C - Murata Electronics - 3D model - Other - 1415465C-1
click to zoom

1415465C Details

  • Manufacturer Part Number:

    1415465C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Construction:

    Cylindrical

  • DC Resistance:

    0.042 Ω

  • Inductance-Nom (L):

    150 µH

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Diameter:

    29.8 mm

  • Package Height:

    21.8 mm

  • Package Length:

    32.2 mm

  • Package Style:

    Radial

  • Package Width:

    29.8 mm

  • Packing Method:

    Bulk

  • Rated Current-Max:

    6.5 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Tolerance:

    10%

1415465C Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 1415465C can be found in the Murata Land Pattern Recommendation document, which provides detailed guidelines for PCB layout and design.
  • To prevent moisture-related issues, it's essential to follow proper storage and handling procedures, such as storing the components in a dry environment, using desiccant packaging, and baking the components before reflow soldering.
  • The maximum reflow temperature for the 1415465C is 260°C, as specified in the datasheet. Exceeding this temperature can cause damage to the component.
  • While the 1415465C is designed to be robust, it's essential to evaluate the component's performance in high-vibration environments. Murata provides vibration testing data, and engineers should consult this data to determine the component's suitability for their specific application.
  • To troubleshoot issues with the 1415465C, engineers should consult the datasheet, application notes, and Murata's technical support resources. Common issues include incorrect PCB layout, inadequate soldering, and component damage during handling or assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1415465C Overview

Use the download button to access the 1415465C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14154, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
