Adesto recommends following a 4-layer PCB stackup with a solid ground plane on the bottom layer, and placing the device near the center of the board to minimize noise and radiation. Additionally, keep the signal traces short and away from the edges of the board.
To ensure reliable communication, use a dedicated SPI bus with a separate chip select line for the 14212R-500. Also, ensure that the microcontroller's SPI clock frequency is within the recommended range of 1-10 MHz, and use a pull-up resistor on the CS pin to prevent unwanted writes.
The 14212R-500 supports up to 100,000 write cycles per page, with a total of 128 pages. This translates to a total of 12,800,000 write cycles for the entire device.
The 14212R-500 has a built-in power-on reset (POR) circuit that resets the device during power-up. For brown-out detection, use an external voltage supervisor or a microcontroller with a built-in brown-out detector to monitor the power supply voltage and reset the device if it falls below a certain threshold.
The recommended storage temperature range for the 14212R-500 is -40°C to +125°C. However, it's essential to follow the recommended operating temperature range of -40°C to +85°C during normal operation to ensure reliable performance and data retention.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
14212R-500 Overview

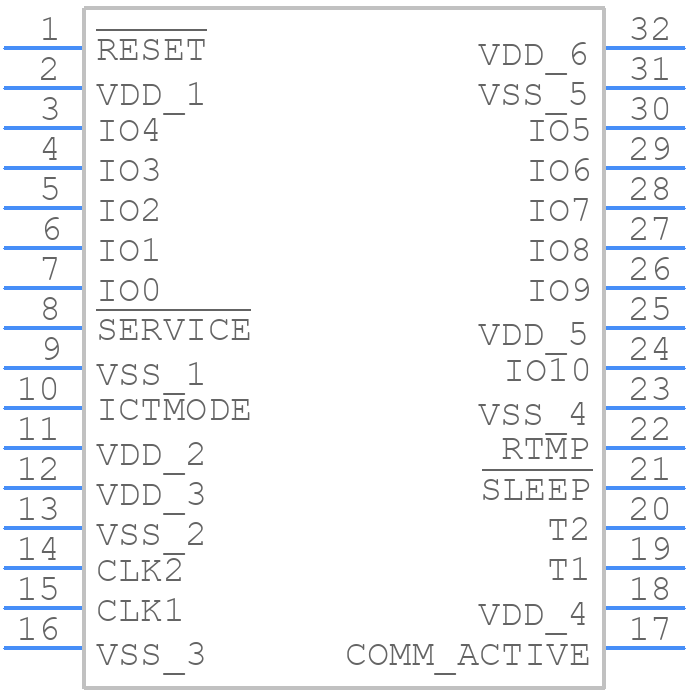

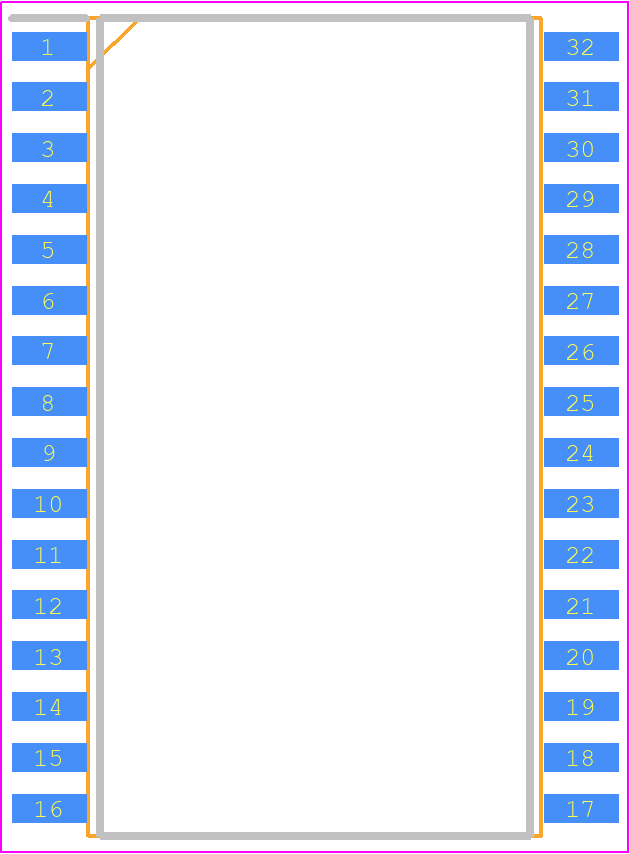

Use the download button to access the 14212R-500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14212,
or try a keyword search
