1422311C footprint, schematic symbol and 3D model by Murata Electronics

Symbol

click to zoom

PCB Footprints

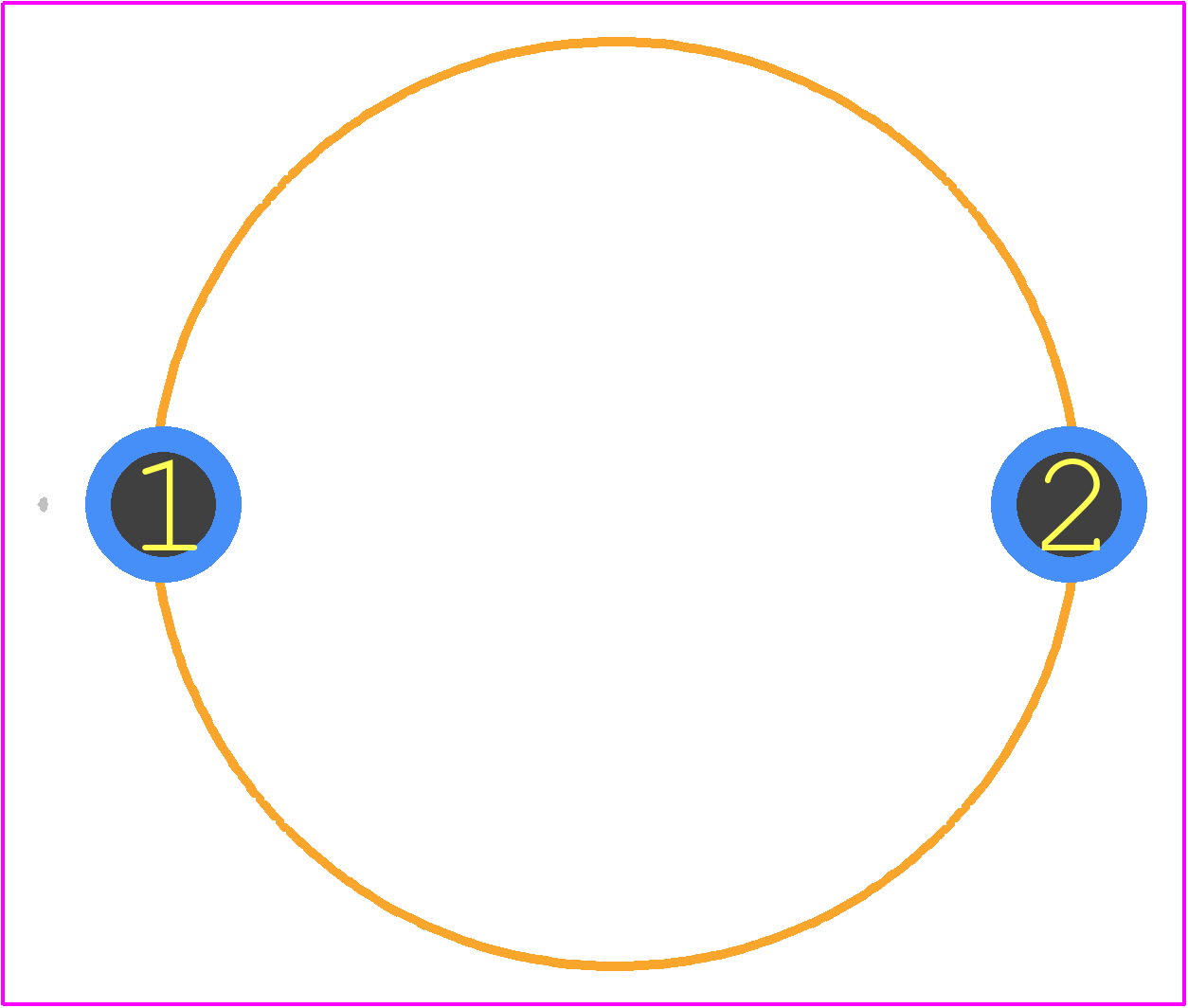

1422311C - Murata Electronics PCB footprint - Other - Other - 1422311C-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1422311C
Part Number 1422311C
Manufacturer Murata Electronics
Pin Count 2
Part Category Inductor
Package Category Other
Footprint Name Other - 1422311C-2
Released Date Nov 29, 2019
Last Modified Date Jan 3, 2025 3:41 PM UTC
Pinout / Pin List Click Here (Member Only)

1422311C Details

Manufacturer Part Number:
1422311C
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
RADIAL LEADED
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Factory Lead Time:
8 Weeks
Manufacturer:
Murata Manufacturing Co Ltd
YTEOL:
7
Construction:
Cylindrical
DC Resistance:
0.014 Ω
Inductance-Nom (L):
22 µH
Inductor Application:
POWER INDUCTOR
Inductor Type:
GENERAL PURPOSE INDUCTOR
JESD-609 Code:
e3
Lead Diameter:
1.3 mm
Lead Length:
10 mm
Lead Spacing:
23.9 mm
Number of Functions:
1
Number of Terminals:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Height:
14 mm
Package Length:
27 mm
Package Style:
Radial
Package Width:
24.4 mm
Packing Method:
Bulk
Rated Current-Max:
11 A
Self Resonance Frequency:
9.3 MHz
Shape/Size Description:
CYLINDRICAL PACKAGE
Shielded:
NO
Surface Mount:
NO
Terminal Finish:
Tin (Sn)
Terminal Placement:
RADIAL
Terminal Shape:
WIRE
Test Frequency:
0.001 MHz
Tolerance:
15%
