1424235 - Phoenix Contact

Description: SACC-DSI-M8FS-8CON-M10-L180 SH - Device connector rear mounting, 8-position, Socket, straight, M8, A-coding, Wave soldering

Download 1424235 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1424235 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

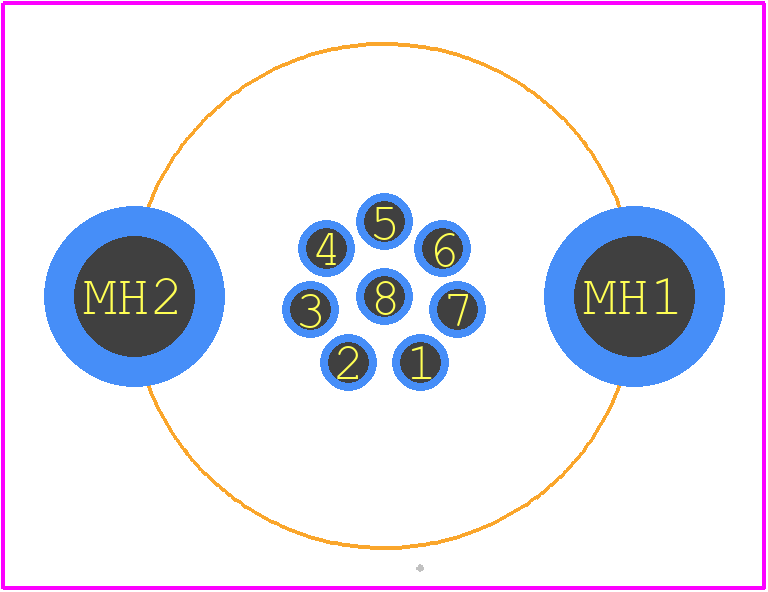

1424235 - Phoenix Contact PCB footprint - Other - Other - 1424235-4
click to zoom
3D Models
1424235 - Phoenix Contact - 3D model - Other - 1424235-4
click to zoom

1424235 Details

  • Manufacturer Part Number:

    1424235

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

1424235 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1424235 is -40°C to 125°C.
  • Yes, the 1424235 is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • The 1424235 is not certified for use in hazardous locations. If you need a product for hazardous locations, consider Phoenix Contact's ATEX- or IECEx-certified products.
  • The 1424235 can accommodate wire sizes up to 2.5 mm² (AWG 14).
  • Yes, the 1424235 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1424235 Overview

Use the download button to access the 1424235 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14242, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
