1425604 - Phoenix Contact

Description: SACC-CI-M12FSL-4CON-L180 THR T - Contact carrier, Power, 4-position, Socket, straight, M12, L-coding, THR solder connection

Download 1425604 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1425604 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

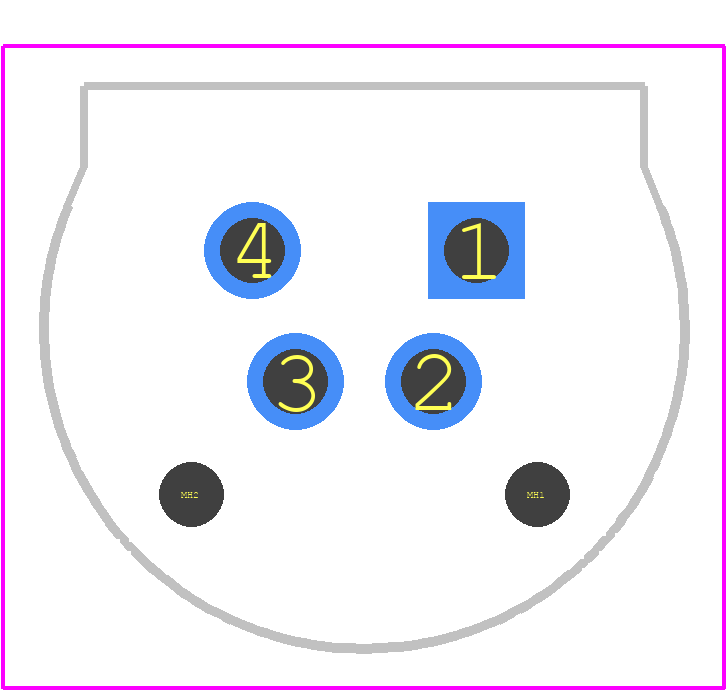

1425604 - Phoenix Contact PCB footprint - Other - Other - 1425606
click to zoom
3D Models
1425604 - Phoenix Contact - 3D model - Other - 1425606
click to zoom

1425604 Details

  • Manufacturer Part Number:

    1425604

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

1425604 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Phoenix Contact application notes.
  • Yes, the 1425604 connector is designed to withstand high-vibration environments, with a vibration resistance of 10 g according to IEC 60068-2-6.
  • Yes, the 1425604 connector is designed for outdoor applications, with a protection rating of IP67 according to IEC 60529.
  • Yes, the 1425604 connector is designed for use with both solid and stranded wires, with a wire size range of 0.5 mm² to 2.5 mm².
  • Yes, the 1425604 connector is UL certified, with a UL file number E358853.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1425604 Overview

Use the download button to access the 1425604 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14256, or try a keyword search, such as Other Circular Connectors
