1433507C - Murata Electronics

1433507C Frequently Asked Questions (FAQs)

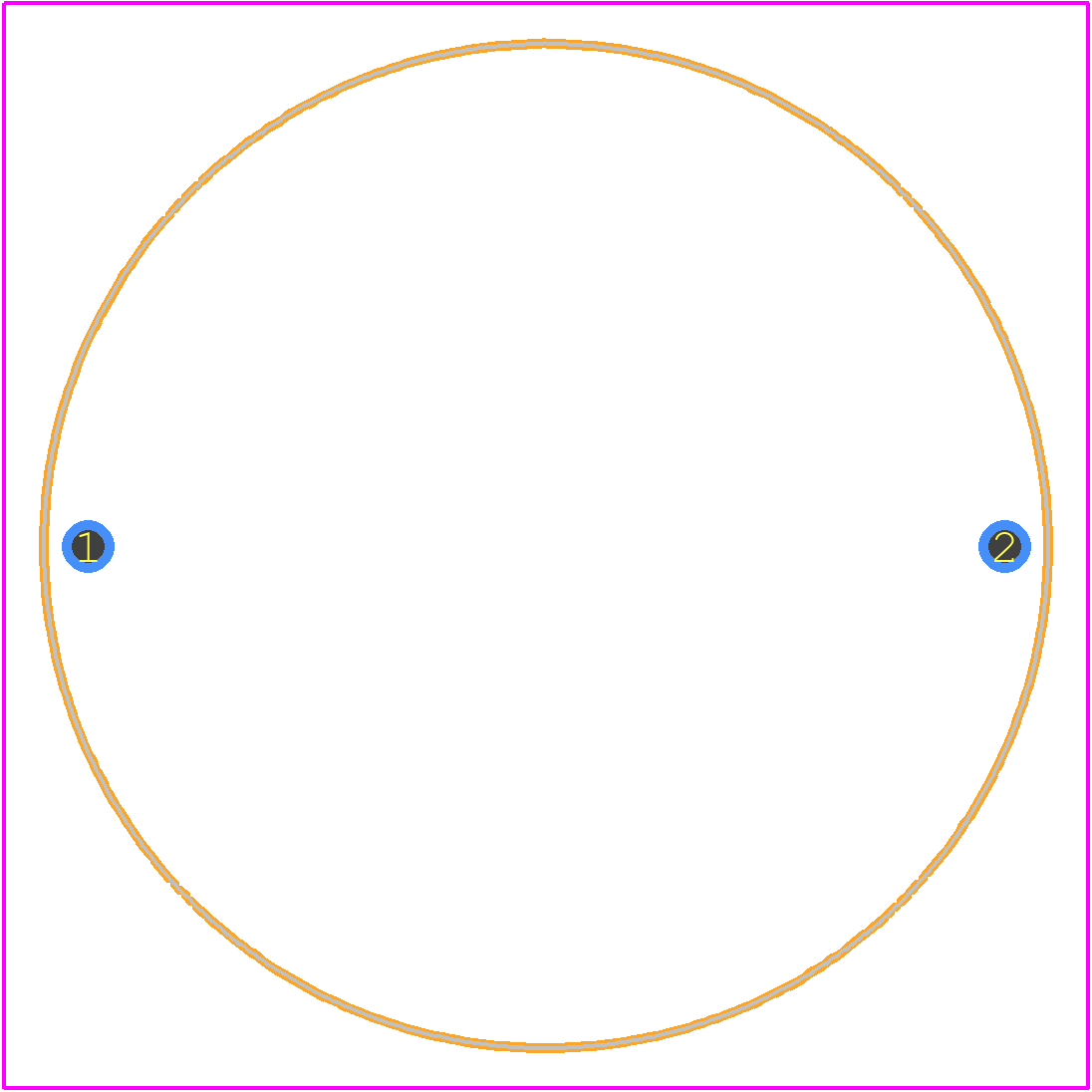

• What is the recommended land pattern for the 1433507C?
  Murata recommends a land pattern with a pad size of 1.3mm x 0.8mm, and a spacing of 0.5mm between pads. Refer to the Murata Land Pattern Guidelines document for more information.
• Can I use the 1433507C in a high-temperature environment?
  The 1433507C is rated for operation up to 125°C, but it's recommended to derate the component's performance at high temperatures. Consult with Murata's application engineers for specific guidance on high-temperature applications.
• How do I handle the 1433507C during PCB assembly to prevent damage?
  Handle the component by the edges, avoid touching the pads, and use an anti-static wrist strap or mat to prevent ESD damage. Follow standard PCB assembly and handling procedures to ensure component reliability.
• What is the recommended soldering profile for the 1433507C?
  Murata recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a cooling rate of 4°C/s. Refer to the Murata Soldering Guidelines document for more information.
• Can I use the 1433507C in a high-vibration environment?
  The 1433507C is designed to withstand moderate vibration, but it's recommended to consult with Murata's application engineers for specific guidance on high-vibration applications. Additional mechanical support or component securing may be necessary.
