1433810000 - Weidmüller

Description: PCB connector RJ45 modular jack, Cat. 5 , THT solder connection, Shielding: Yes, LED: No, Gold over nickel, Tray

Download 1433810000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1433810000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

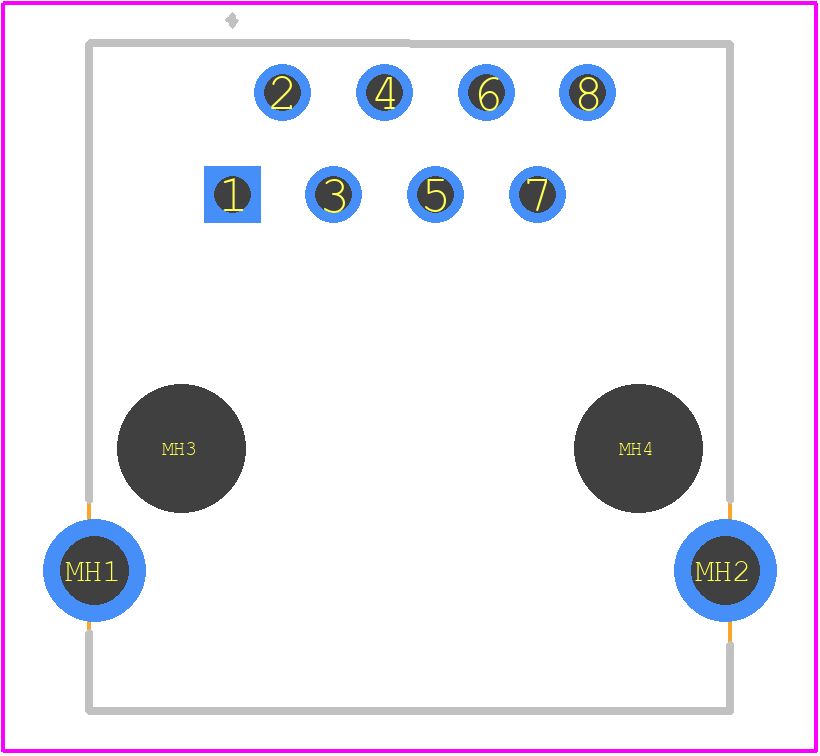

1433810000 - Weidmüller PCB footprint - Other - Other - 1433810000-1
click to zoom
3D Models
1433810000 - Weidmüller - 3D model - Other - 1433810000-1
click to zoom

1433810000 Details

  • Manufacturer Part Number:

    1433810000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

1433810000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1433810000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1433810000 is designed for DIN rail mounting, making it easy to install and integrate into existing systems.
  • The maximum current rating of the 1433810000 is 10A per contact, making it suitable for use in applications that require high current handling.
  • Yes, the 1433810000 is RoHS and REACH compliant, making it suitable for use in applications that require compliance with these regulations.
  • The 1433810000 is typically used in industrial automation, process control, and power distribution applications, where reliable and secure connections are critical.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1433810000 Overview

Use the download button to access the 1433810000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14338, or try a keyword search, such as Telecom and Datacom Connectors
