Part Image

1436550 - Phoenix Contact

Description: SACC-DSIV-FSD-4CON-L90 SCO - Device connector front mounting, 4-position, Socket, angled, M12-SPEEDCON, D-coding, THR and wave soldering, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1436550 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1436550 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

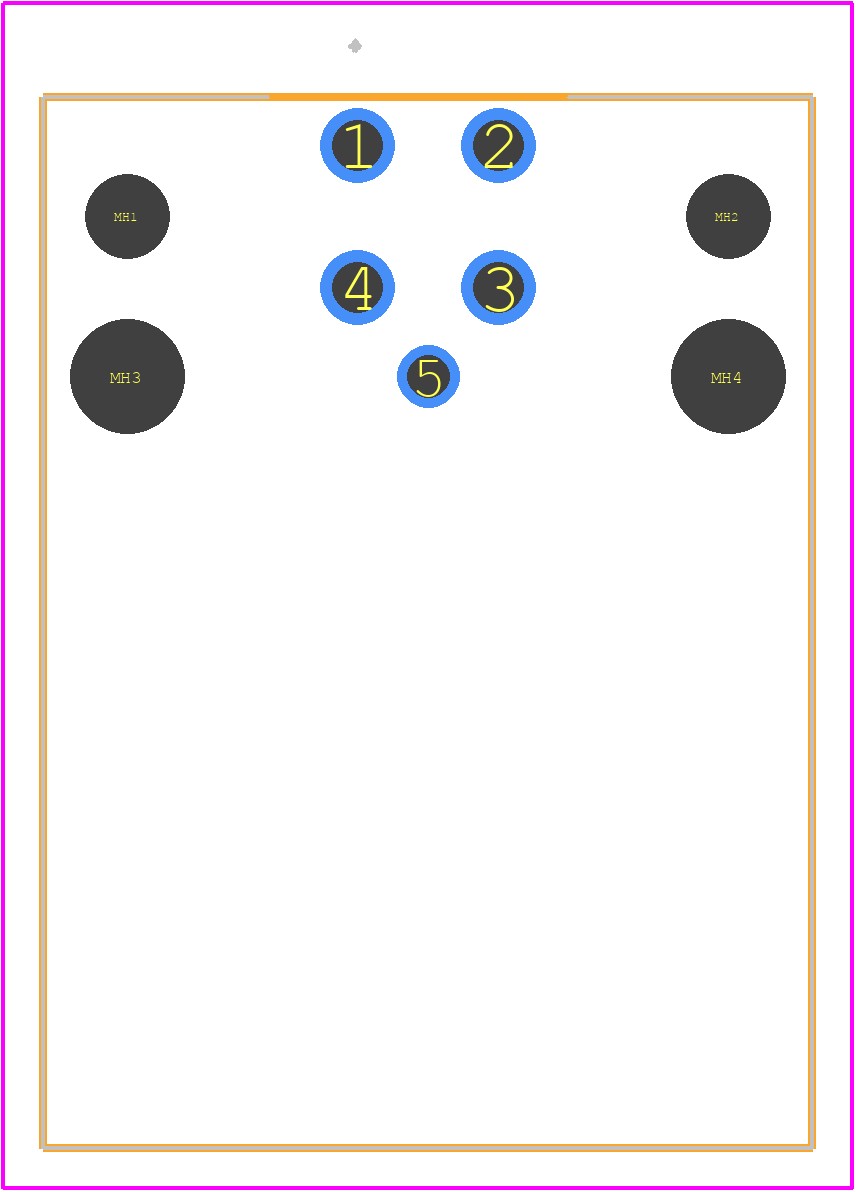

1436550 - Phoenix Contact PCB footprint - Other - Other - 1436550-1
click to zoom
3D Models
1436550 - Phoenix Contact - 3D model - Other - 1436550-1
click to zoom

1436550 Details

  • Manufacturer Part Number:

    1436550

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8.75

  • Additional Feature:

    SHIELDED

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Environmental Characteristics:

    ENVIRONMENT RESISTANT

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE66

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

1436550 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1436550 connector is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific vibration profiles.
  • The 1436550 connector is rated for operating temperatures from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's recommended to consult with Phoenix Contact for specific environmental requirements.
  • The 1436550 connector is rated for up to 12A per contact. However, it's recommended to consult with Phoenix Contact for specific current-carrying capacity and derating factors.
  • Yes, Phoenix Contact recommends a minimum PCB thickness of 1.6 mm and a keep-out zone of 2 mm around the connector to ensure proper mating and to prevent damage to the PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1436550 Overview

Use the download button to access the 1436550 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14365, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
