1436563 - Phoenix Contact

Description: SACC-DSIV-FS-5CON-L90 SCO - Device connector rear mounting, 5-position, Socket, angled, M12-SPEEDCON, A-coding, THR and wave soldering, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1436563 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1436563 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

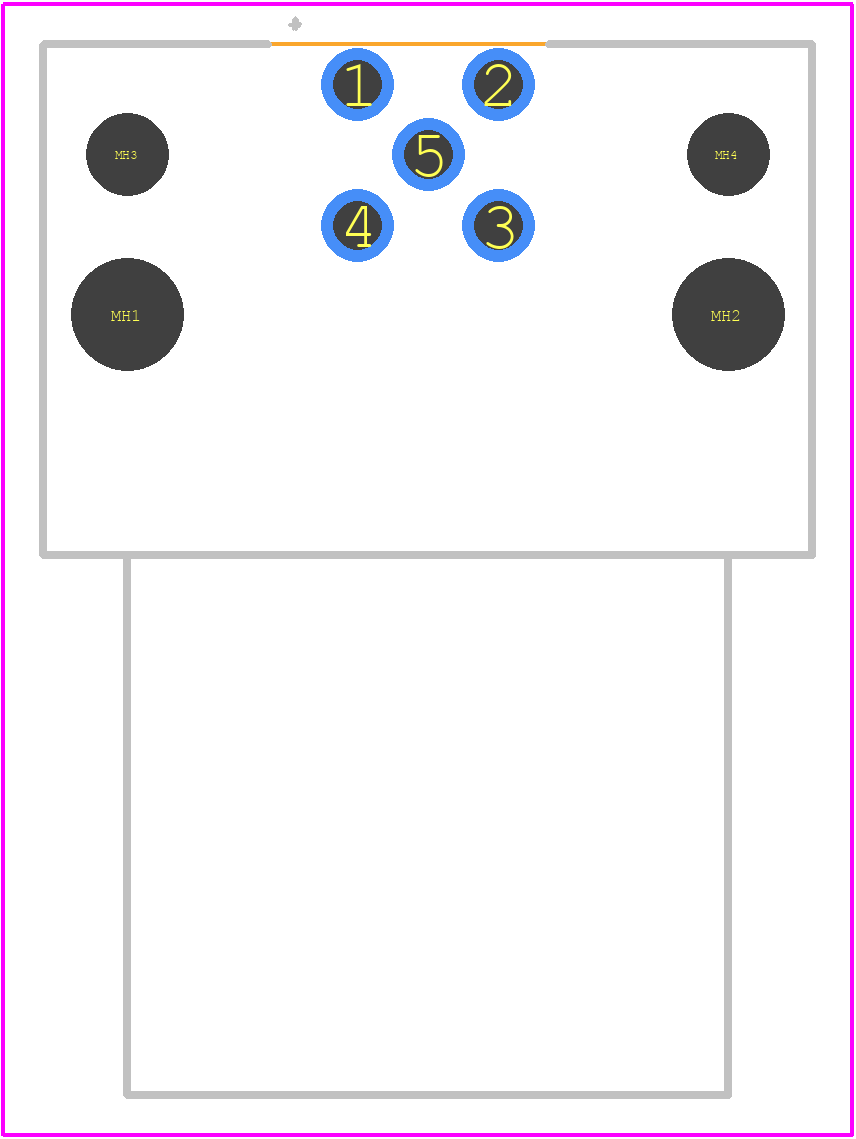

1436563 - Phoenix Contact PCB footprint - Other - Other - 1436563-2
click to zoom
3D Models
1436563 - Phoenix Contact - 3D model - Other - 1436563-2
click to zoom

1436563 Details

  • Manufacturer Part Number:

    1436563

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8.75

  • Additional Feature:

    STANDARD: 94V-0, IP67

  • Backshell Type:

    SOLID

  • Body Depth:

    0.531 inch

  • Body Diameter:

    0.59 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE66

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

1436563 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1436563 connector is designed to withstand high vibrations and is suitable for use in applications with intense mechanical stress, such as in industrial automation or transportation systems.
  • The connector's housing and insulating materials are resistant to many chemicals and cleaning agents, but it's recommended to check the compatibility of specific substances with Phoenix Contact's materials before use.
  • The 1436563 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water. However, it's recommended to use additional protection measures, such as conformal coating or potting, for extended outdoor or humid environment use.
  • The operating temperature range for the 1436563 connector is -40°C to 125°C, making it suitable for use in a wide range of applications, including those with high temperature fluctuations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1436563 Overview

Use the download button to access the 1436563 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14365, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
