1436615 - Phoenix Contact

Description: SACC-DSIV-MSB-5CON-L90 SCO - Device connector rear mounting, 5-position, Pin, angled, M12-SPEEDCON, B-coding, THR and wave soldering, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1436615 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1436615 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

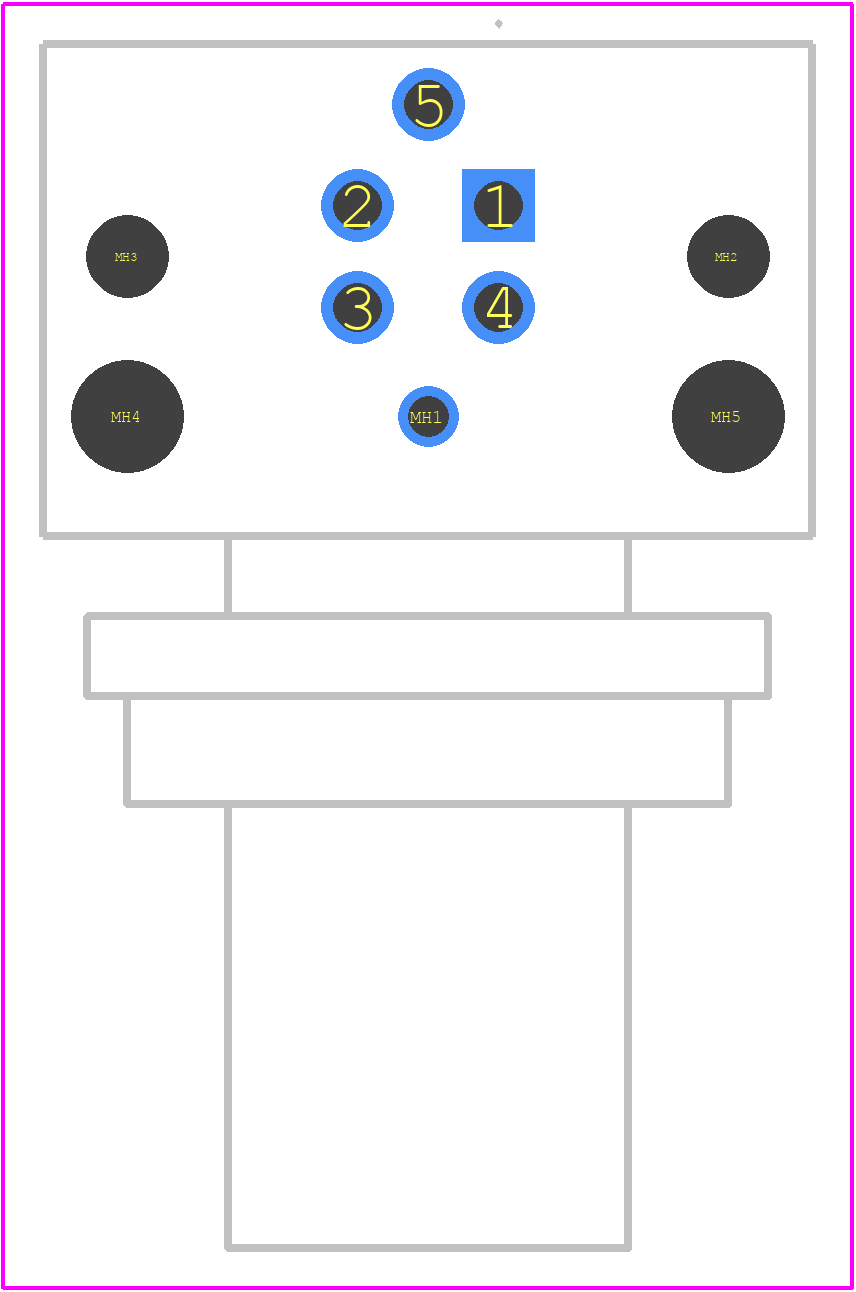

1436615 - Phoenix Contact PCB footprint - Other - Other - 1436615-1
click to zoom
3D Models
1436615 - Phoenix Contact - 3D model - Other - 1436615-1
click to zoom

1436615 Details

  • Manufacturer Part Number:

    1436615

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    9

  • Additional Feature:

    IEC-61076-2-101, RATED VOLTAGE: 60V

  • Backshell Type:

    SOLID

  • Body Depth:

    1.909 inch

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE66

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

1436615 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the Phoenix Contact application notes for more information.
  • Yes, the 1436615 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to prevent damage or disconnection.
  • The 1436615 connector is rated for operation in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and Phoenix Contact's environmental specifications for more information.
  • No, the 1436615 connector is designed for use with wire gauges AWG 24 to AWG 30. Using a larger wire gauge may compromise the connector's performance and reliability.
  • Yes, the 1436615 connector is designed for automated assembly and can be used with pick-and-place machines and other automated assembly equipment.
