1437038 - Phoenix Contact

Description: SACC-CI-M12MS-8CON-L90 SH SCO - Contact carrier, 8-position, Pin, angled, M12, A-coding, Wave soldering, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Download 1437038 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1437038 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

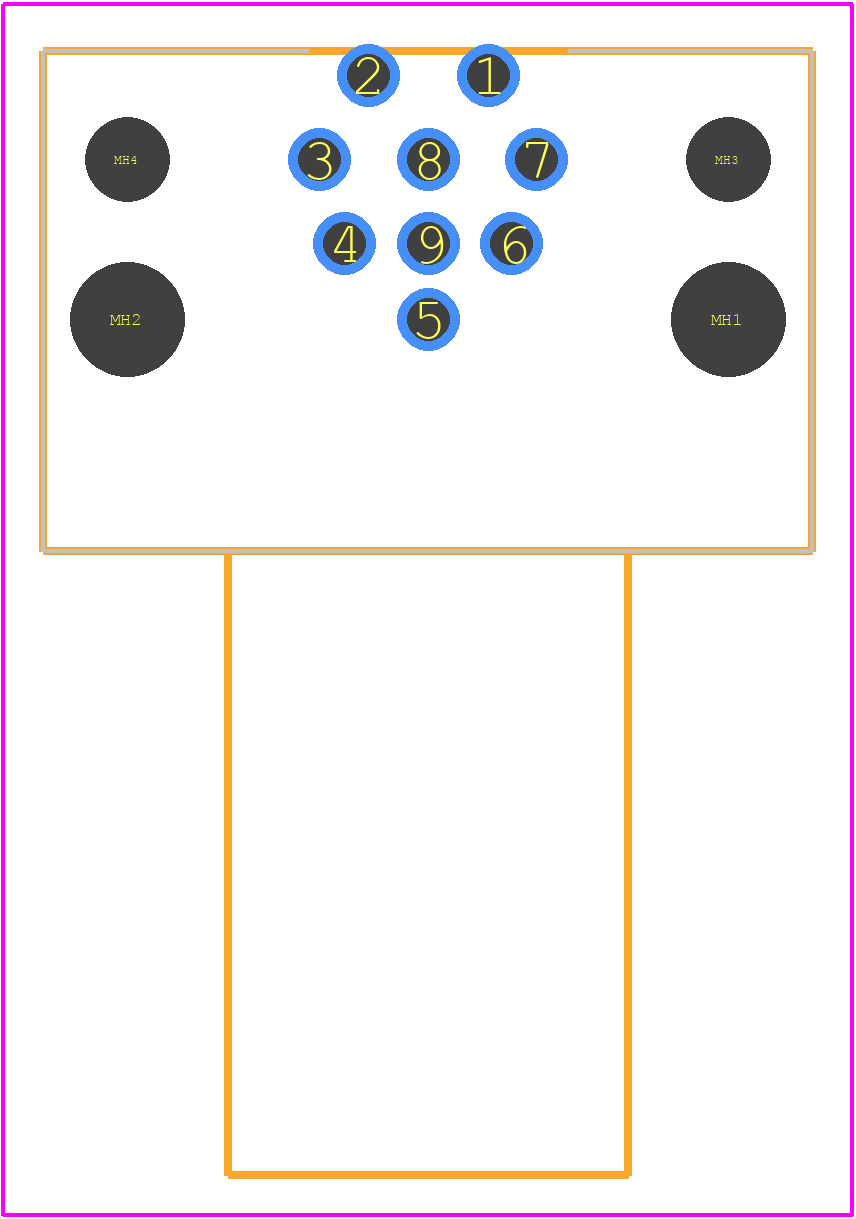

1437038 - Phoenix Contact PCB footprint - Other - Other - 1437038-1
click to zoom
3D Models
1437038 - Phoenix Contact - 3D model - Other - 1437038-1
click to zoom

1437038 Details

  • Manufacturer Part Number:

    1437038

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    IEC-61076-2-101, RATED VOLTAGE: 30V

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE66

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

1437038 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and manufacturer's recommendations.
  • Yes, the 1437038 connector is designed to withstand vibrations and is suitable for use in industrial and transportation applications. However, it's crucial to ensure proper mounting and secure fastening to the PCB.
  • Yes, the 1437038 connector is designed for automated assembly and is compatible with reflow soldering processes. However, it's essential to follow the manufacturer's guidelines for soldering profiles and temperatures.
  • The 1437038 connector is rated for operation in temperatures ranging from -40°C to 125°C. However, it's essential to consider the specific application and environmental conditions to ensure reliable operation.
  • The 1437038 connector is rated for currents up to 12 A per contact. However, it's crucial to consider the specific application, wire gauge, and PCB design to ensure reliable operation and prevent overheating.
