1441820 - Phoenix Contact

Description: SACC-DSI-M12MS-12CON-M16 - Device connector rear mounting, 12-position, Pin, straight, M12-SPEEDCON, A-coding, Wave soldering, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1441820 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1441820 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

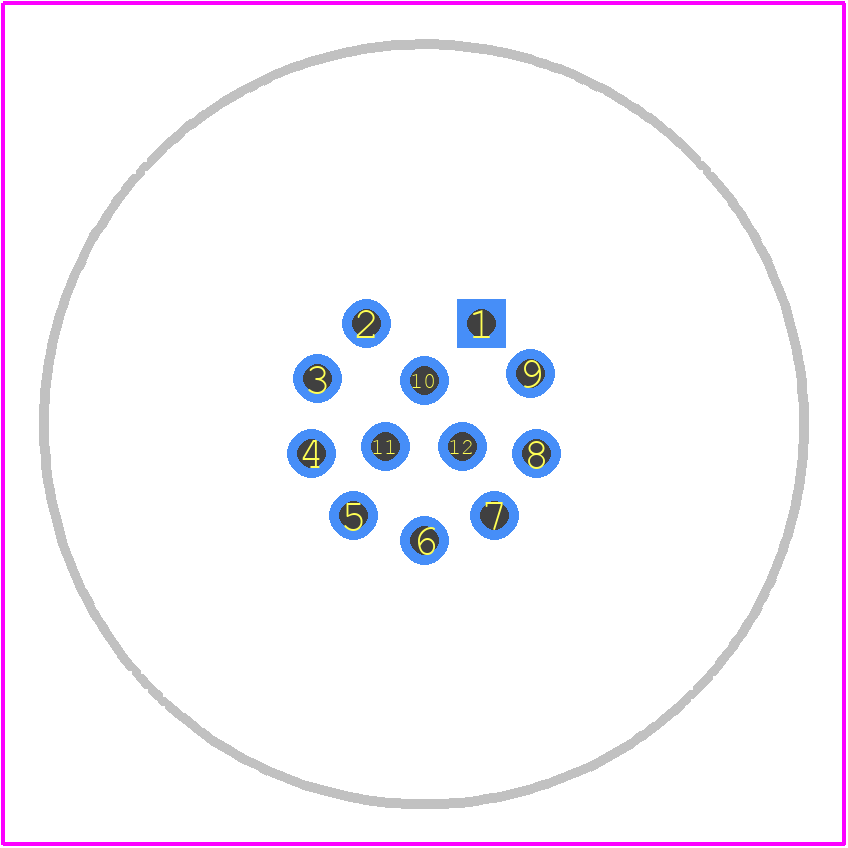

1441820 - Phoenix Contact PCB footprint - Other - Other - 1441820
click to zoom
3D Models
1441820 - Phoenix Contact - 3D model - Other - 1441820
click to zoom

1441820 Details

  • Manufacturer Part Number:

    1441820

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    STANDARDS: IEC 61076-2-101; GOST

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

1441820 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) to ensure a secure connection.
  • Yes, the 1441820 connector is designed to withstand vibrations up to 10 g (according to IEC 60068-2-6) and is suitable for use in industrial and transportation applications.
  • Yes, the 1441820 connector has a protection rating of IP67, making it suitable for outdoor use and resistant to dust and water ingress.
  • While it's technically possible, it's not recommended to use a wire gauge other than the recommended 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14) as it may affect the connector's performance and reliability.
  • Yes, the 1441820 connector is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and accessories.
