1441943 - Phoenix Contact

Description: SACC-DSI-M12MS-12CON-M16 SH - Device connector rear mounting, 12-position, Pin, straight, M12-SPEEDCON, A-coding, Wave soldering, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1441943 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1441943 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

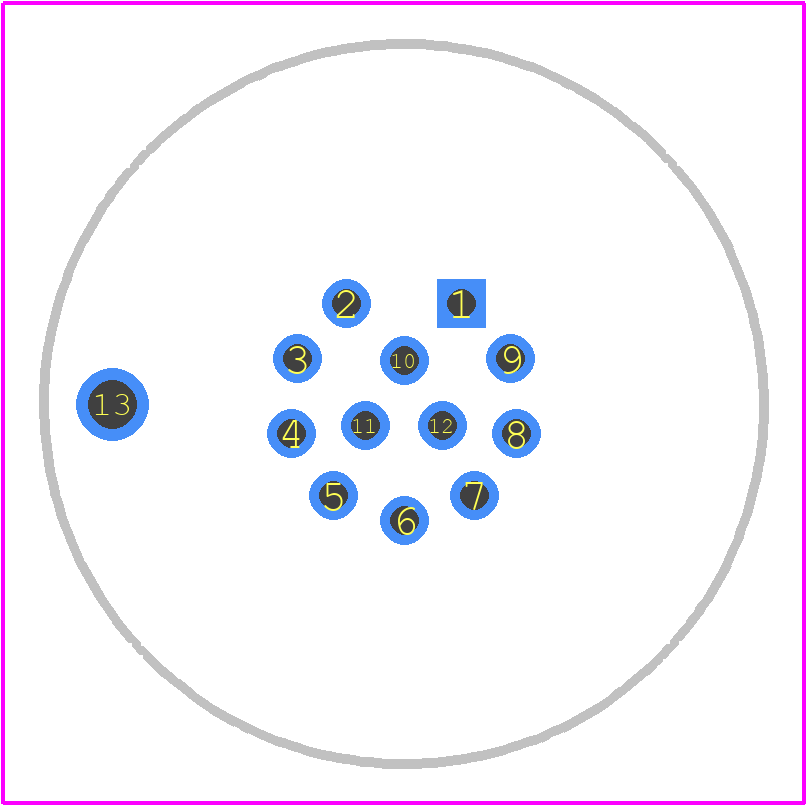

1441943 - Phoenix Contact PCB footprint - Other - Other - 1441943
click to zoom
3D Models
1441943 - Phoenix Contact - 3D model - Other - 1441943
click to zoom

1441943 Details

  • Manufacturer Part Number:

    1441943

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    9

  • Additional Feature:

    RATED CURRENT(SIGNAL):1.5A; RATED VOLTAGE:30V

  • Backshell Type:

    SOLID

  • Body Depth:

    0.906 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE66

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC;UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

1441943 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, but it's always best to consult the specific panel manufacturer's recommendations.
  • Yes, the 1441943 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's essential to ensure proper mounting and secure wiring to prevent damage.
  • The 1441943 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's crucial to ensure proper sealing and protection of the connector and wiring.
  • While it's technically possible, using a different wire gauge than recommended may affect the connector's performance and reliability. It's recommended to stick to the recommended wire gauge to ensure optimal performance.
  • To ensure proper grounding, make sure to connect the grounding pin to a suitable grounding point on the panel or device. Consult the device's documentation for specific grounding requirements.
