1441972 - Phoenix Contact

Description: SACC-DSI-M12FS-17CON-M16 SH - Device connector rear mounting, 17-position, Socket, straight, M12-SPEEDCON, A-coding, Wave soldering, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1441972 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1441972 - Phoenix Contact - PCB symbol
click to zoom

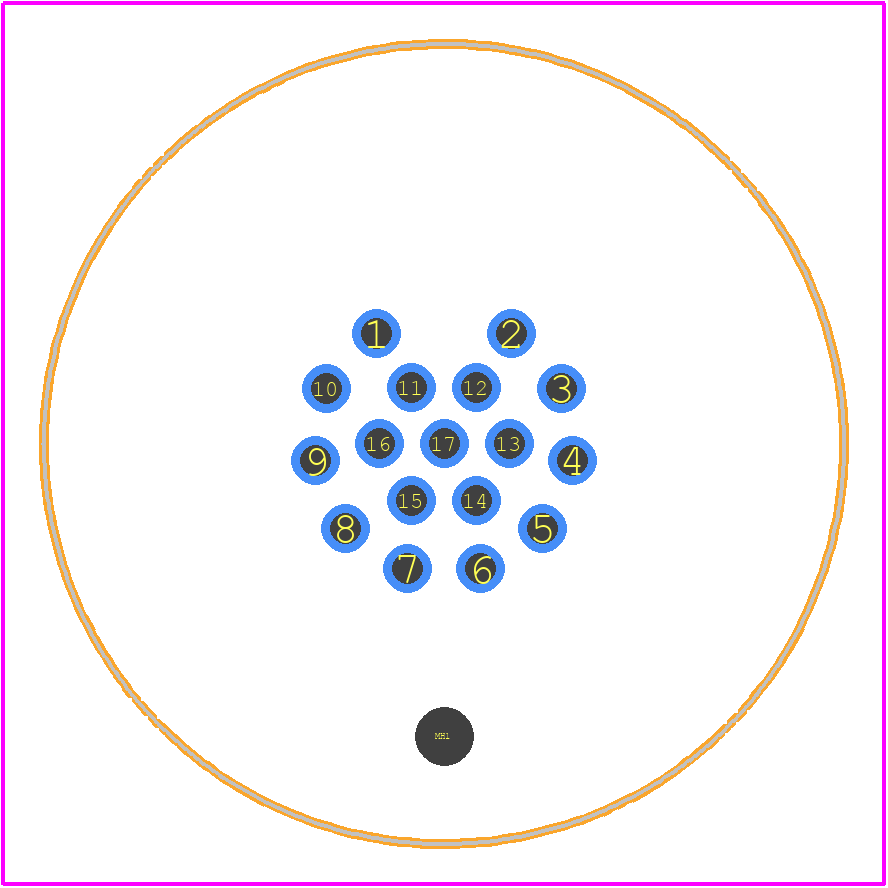

PCB Footprints
1441972 - Phoenix Contact PCB footprint - Other - Other - 1441972
click to zoom
3D Models
1441972 - Phoenix Contact - 3D model - Other - 1441972
click to zoom

1441972 Details

  • Manufacturer Part Number:

    1441972

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    STANDARD: IEC 61076-2-101, POLARIZED, SHIELDED

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    CABLE AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL PLATED

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    17

1441972 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 1441972 connector is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to follow Phoenix Contact's guidelines for vibration testing and to consult with their technical support team for specific application guidance.
  • The 1441972 connector has a IP67 rating, making it suitable for outdoor use and harsh environments, but it's essential to follow proper installation and sealing guidelines to ensure the connector's integrity.
  • Yes, the 1441972 connector is designed to be compatible with other Phoenix Contact products, and it can also be used with third-party components, but it's recommended to verify compatibility and consult with Phoenix Contact's technical support team for specific application guidance.
  • The 1441972 connector has an operating temperature range of -40°C to 125°C, but it's essential to consult the datasheet and Phoenix Contact's technical support team for specific application guidance, as temperature ranges may vary depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1441972 Overview

Use the download button to access the 1441972 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14419, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
