1456433 - Phoenix Contact

Description: SACC-SQ-M12MS-5CON-20-L180 - Device connector front mounting, Universal, 5-position, Pin, straight, M12-SPEEDCON, A-coding, Wave soldering, 0.34 mm<sup>2</sup>, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb &lt; 0.1%), a lead-free alternative is possible on request in advance

Download 1456433 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1456433 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

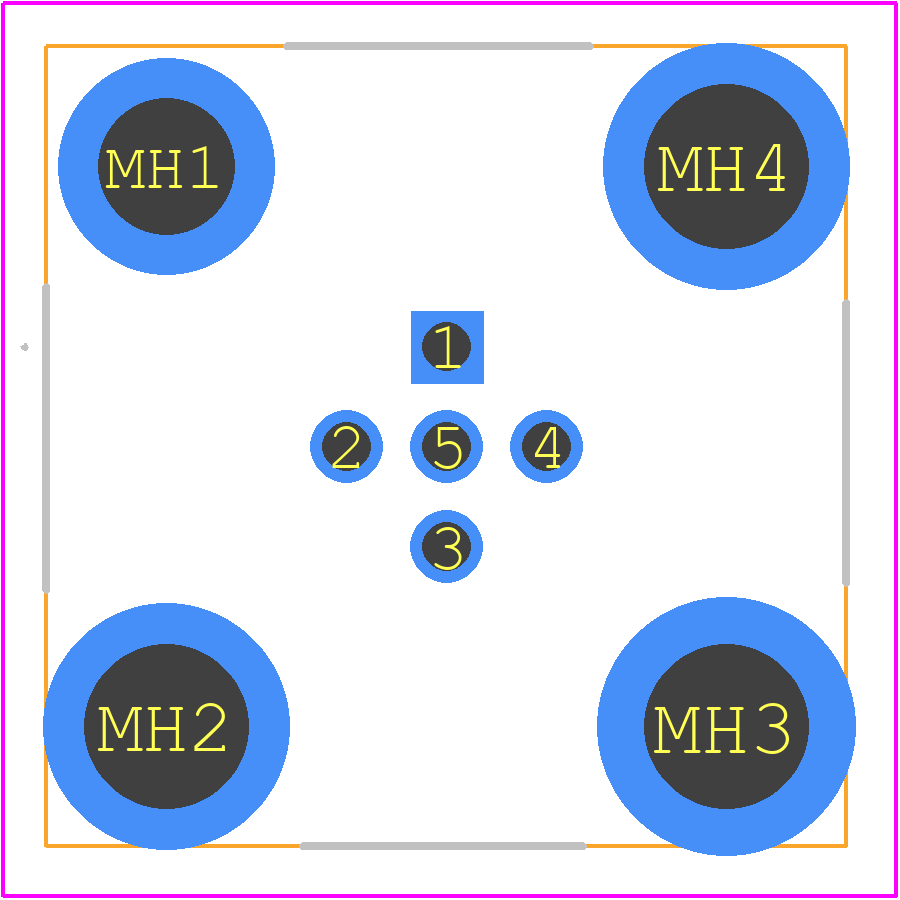

1456433 - Phoenix Contact PCB footprint - Other - Other - 1456433-2
click to zoom
3D Models
1456433 - Phoenix Contact - 3D model - Other - 1456433-2
click to zoom

1456433 Details

  • Manufacturer Part Number:

    1456433

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Connector Type:

    CIRCULAR CONNECTOR

  • Manufacturer Series:

    1456433

1456433 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1456433 connector is designed to withstand high vibrations and is suitable for use in industrial and transportation applications.
  • The connector is resistant to many common chemicals and cleaning agents, but it's recommended to check the specific compatibility before exposure.
  • The operating temperature range for the 1456433 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.
  • The connector has a IP67 rating, which means it is protected against temporary immersion in water and can withstand humid environments, but it's not designed for continuous underwater use.
