1456666 - Phoenix Contact

Description: VS-08-DSIV-L180-HYB SCO - Device connector rear mounting, Ethernet CAT5 (IEC 11801:2002), 8-position, Socket, straight, M12-SPEEDCON, Y-coding, Wave soldering, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1456666 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1456666 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

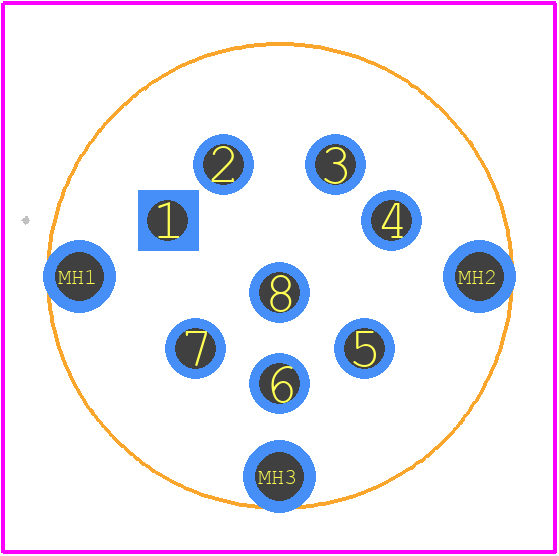

1456666 - Phoenix Contact PCB footprint - Other - Other - 1456666
click to zoom
3D Models
1456666 - Phoenix Contact - 3D model - Other - 1456666
click to zoom

1456666 Details

  • Manufacturer Part Number:

    1456666

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    9

  • Additional Feature:

    RATED VOLTAGE: 48VAC

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYPHTALAMIDE

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CUL;EAC;UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

1456666 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1456666 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1456666 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, making it easy to integrate into existing systems.
  • The maximum current rating for the 1456666 is 41 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1456666 is designed to be used in harsh environments, including those with high temperatures, humidity, and vibration, making it suitable for use in industrial and outdoor applications.
  • The 1456666 has an IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in applications where exposure to moisture is a concern.
