1457636 - Phoenix Contact

Description: SACC-CI-M12FSD-4CON-SH TOR 32 - Contact carrier, 4-position, Socket, straight, M12, D-coding, THR solder connection, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1457636 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1457636 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

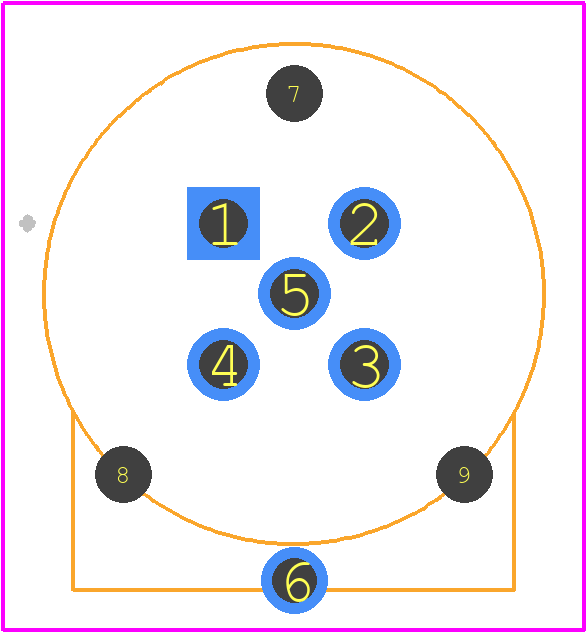

1457636 - Phoenix Contact PCB footprint - Other - Other - 1457636
click to zoom
3D Models
1457636 - Phoenix Contact - 3D model - Other - 1457636
click to zoom

1457636 Details

  • Manufacturer Part Number:

    1457636

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: IEC 61076-2-101

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND CABLE

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

1457636 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material.
  • Yes, the 1457636 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing to ensure suitability for your specific application.
  • The 1457636 connector has a protection rating of IP67, making it suitable for outdoor use and exposure to harsh environments. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. It's best to stick to the recommended wire gauge range of 0.5 mm² to 2.5 mm².
  • The 1457636 connector is designed to be compatible with other Phoenix Contact products, such as their terminal blocks and PCB connectors. However, compatibility with third-party components should be verified on a case-by-case basis.
