1462047-1 - TE Connectivity

Description: Signal Relays, 220 VDC Contact Voltage, 250 VAC Contact Voltage, 100mW Coil Power Rating DC, Printed Circuit Board, Axicom IM

Download 1462047-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

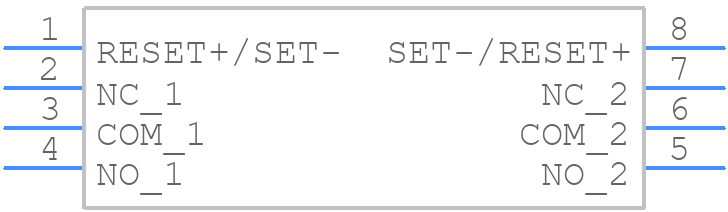

1462047-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
1462047-1 - TE Connectivity PCB footprint - Other - Other - 1462047-1-2
click to zoom
3D Models
1462047-1 - TE Connectivity - 3D model - Other - 1462047-1-2
click to zoom

1462047-1 Details

  • Manufacturer Part Number:

    1462047-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    60 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.86

  • Body Breadth:

    6 mm

  • Body Height:

    5.65 mm

  • Body Length or Diameter:

    10 mm

  • Coil Current(DC)-Max:

    0.24 A

  • Coil Power:

    100 mW

  • Coil Resistance:

    58 Ω

  • Coil Voltage(DC)-Max:

    2.4 V

  • Coil Voltage-Nom:

    2.4 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    5A@250VAC

  • Contact Current(AC)-Max:

    5 A

  • Contact Current(DC)-Max:

    5 A

  • Contact (DC) Max Rating R Load:

    5A@220VDC

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    220 V

  • Contact/Output Supply Type:

    AC/DC

  • Dielectric Strength Between Coil and Contacts:

    1500 Vrms

  • Dielectric Strength Between Open Contacts:

    750 Vrms

  • End Contact Material:

    SILVER NICKEL

  • End Contact Plating:

    Gold

  • Input Switching Control Type:

    Random

  • Insulation Resistance:

    1000000000000 Ω

  • JESD-609 Code:

    e4

  • Mounting Feature:

    PANEL MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR

  • Physical Dimension:

    10 X 6 X 5.65

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Terminal Finish:

    Gold (Au)

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    0.75 g
