15-000733 footprint, schematic symbol and 3D model by CONEC

Symbol

click to zoom

PCB Footprints

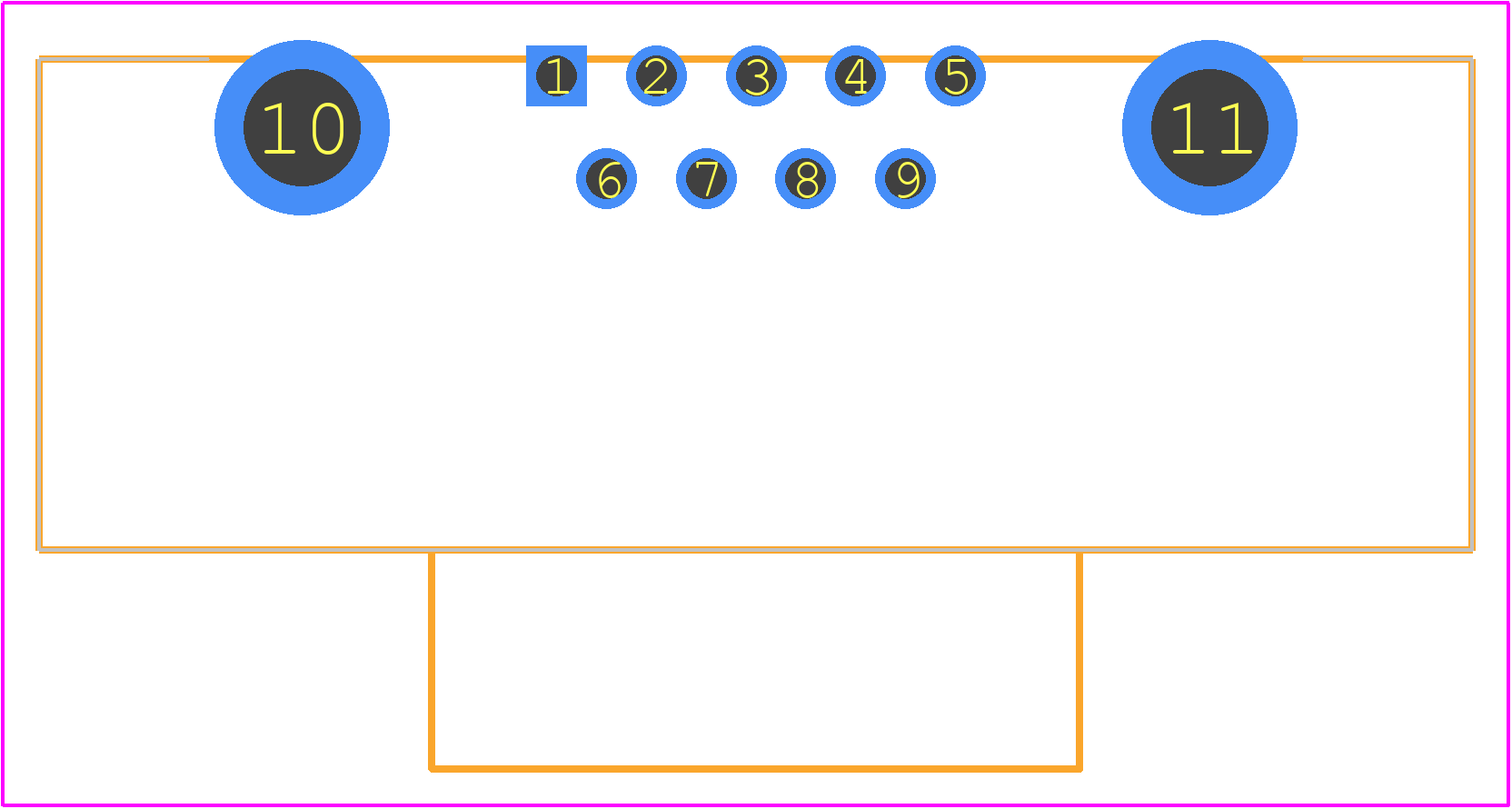

15-000733 - CONEC PCB footprint - Other - Other - 15-000733-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 15-000733
Part Number 15-000733
Manufacturer CONEC
Pin Count 11
Part Category Connector
Package Category Other
Footprint Name Other - 15-000733-1
Released Date Apr 8, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

15-000733 Details

Manufacturer Part Number:
15-000733
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Conec Corporation
Body Breadth:
0.831 inch
Body Depth:
0.531 inch
Body Length:
1.551 inch
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
AU ON NI
Contact Finish Termination:
Gold (Au) over Nickel (Ni)
Contact Gender:
MALE
Contact Material:
COPPER ALLOY
Contact Pattern:
STAGGERED
Contact Resistance:
10 mΩ
Contact Style:
RND PIN-SKT
Dielectric Withstanding Voltage:
1000VDC V
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mounting Option 1:
#4-40
Mounting Option 2:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-25 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
2.8448 mm
Rated Current (Signal):
7.5 A
Reference Standard:
UL
Shell Finish:
NICKEL
Shell Material:
ZINC ALLOY
Terminal Length:
0.191 inch
Terminal Pitch:
2.7432 mm
Termination Type:
SOLDER
Total Number of Contacts:
9

15-000733 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the M3 screw threads, but it's always best to consult the specific application requirements and environmental conditions.
Yes, the connector is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments, but additional testing may be required for specific applications.
Yes, the connector is designed to meet IP67 and IP69K standards, making it suitable for use in harsh environments, including those with high humidity or salt spray. However, additional testing may be required for specific applications.
The operating temperature range for the 15-000733 connector is -40°C to 125°C (-40°F to 257°F), but it's essential to consult the specific application requirements and environmental conditions.
Yes, the connector is designed to support high-speed data transmission up to 10 Gbps, making it suitable for use in applications requiring fast data transfer rates.

Trust Checks

Expert Contribution

System Verified

Community Approved

15-000733 Overview

Use the download button to access the 15-000733 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 15-00, or try a keyword search, such as D Type Connectors
