15-006563 - CONEC

Description: D-Sub Standard Connectors 25 Pos Male Solder Pin Angled

Download 15-006563 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
15-006563 - CONEC - PCB symbol
click to zoom
PCB Footprints

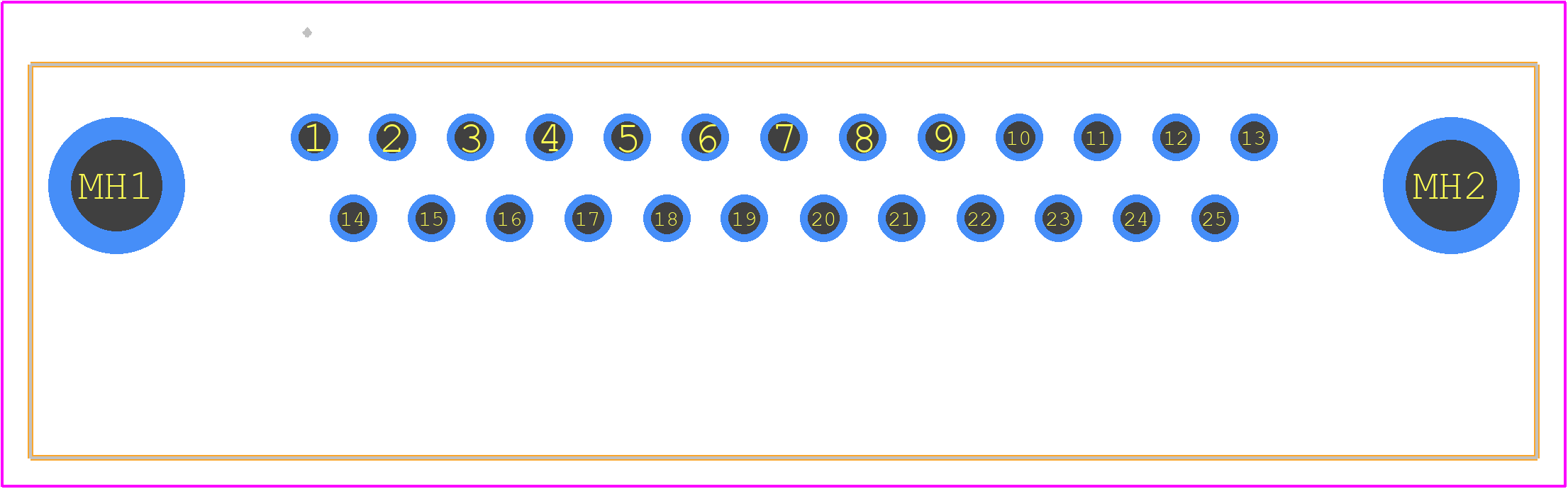

15-006563 - CONEC PCB footprint - Other - Other - 15-006563-1
click to zoom
3D Models
15-006563 - CONEC - 3D model - Other - 15-006563-1
click to zoom

15-006563 Details

  • Manufacturer Part Number:

    15-006563

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Conec Corporation

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Termination:

    Gold (Au) over Nickel (Ni)

15-006563 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 15-006563 connector is -40°C to 125°C, according to Conec Corporation's specifications.
  • Yes, the 15-006563 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
  • The 15-006563 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections over an extended period.
  • Yes, the 15-006563 connector is designed to be resistant to moisture, chemicals, and other environmental factors, making it suitable for use in harsh environments.
  • The typical lead time for delivery of the 15-006563 connector varies depending on the quantity and availability, but it is usually around 6-12 weeks.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

15-006563 Overview

Use the download button to access the 15-006563 schematic symbol, PCB footprint, and 3D model.
