15-007613 - CONEC

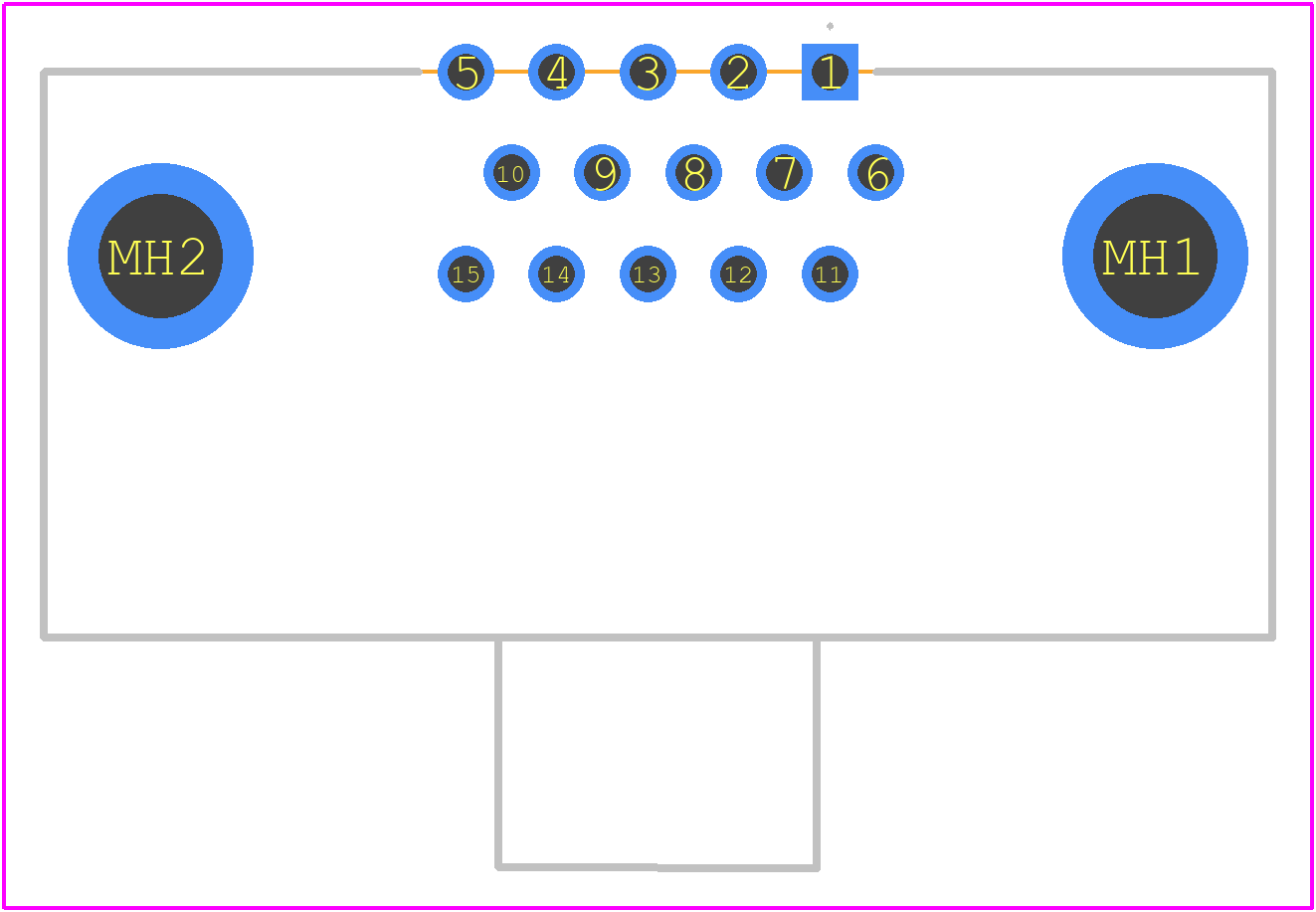

15-007613 Details

• Manufacturer Part Number:

  15-007613

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Conec Corporation

• YTEOL:

  8

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.504 inch

• Body Depth:

  0.573 inch

• Body Length:

  1.216 inch

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Gender:

  FEMALE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  10 mΩ

• Contact Style:

  RND PIN-SKT

• Dielectric Withstanding Voltage:

  1000V V

• Durability:

  50 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insertion Force-Max:

  50 N

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTALATE

• Mating Contact Pitch:

  0.09 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40 UNC

• Mounting Option 2:

  HEXLOCKING SCREW

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD AND PANEL

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  3

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  WATERPROOF

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  FLASH inch

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Material:

  ZINC ALLOY

• Shell Size:

  2/A

• Terminal Length:

  0.13 inch

• Terminal Pitch:

  2.286 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  15

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  50 N
