15-80-0109 - Molex

Description: 2.54mm Pitch C-Grid Header, Through Hole without Peg, Dual Row, Vertical, Shrouded, High Temperature, 10 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating, 3.81mm Inside Shroud to End Circuit Spacing

Download 15-80-0109 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
15-80-0109 - Molex - PCB symbol
click to zoom
PCB Footprints

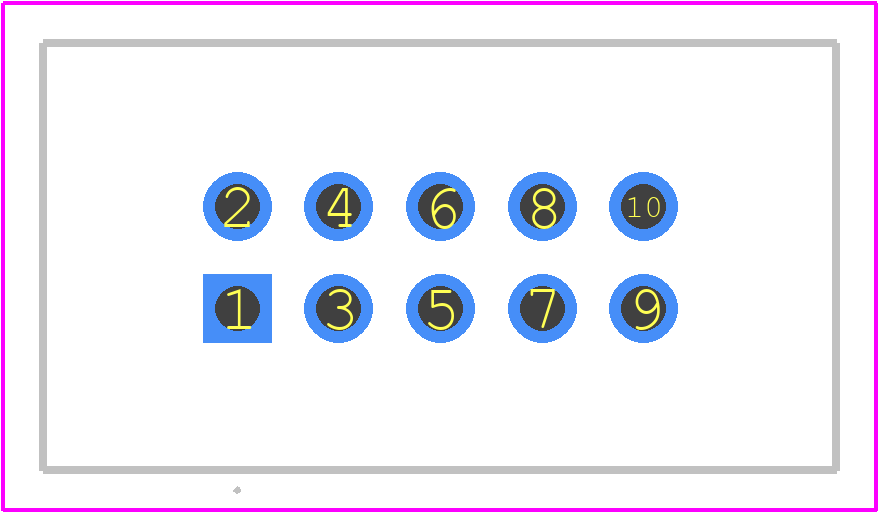

15-80-0109 - Molex PCB footprint - Other - Other - 15-80-0109-5
click to zoom
3D Models
15-80-0109 - Molex - 3D model - Other - 15-80-0109-5
click to zoom

15-80-0109 Details

  • Manufacturer Part Number:

    15-80-0109

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia, Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    9.1

  • Body Breadth:

    0.42 inch

  • Body Depth:

    0.475 inch

  • Body Length:

    0.532 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2.5 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

15-80-0109 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 15800109 connector is designed to withstand vibrations. Molex has tested this connector to meet the IEC 61373 standard for vibration resistance. However, it's crucial to follow proper mounting and installation procedures to ensure the connector's reliability in high-vibration environments.
  • The 15800109 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to consider additional environmental factors such as temperature, humidity, and UV exposure when using this connector in outdoor or harsh environments. Consult with Molex or a qualified engineer to determine the connector's suitability for your specific application.
  • While the datasheet recommends using AWG 20-24 wire, it's possible to use other wire sizes with the 15800109 connector. However, you'll need to consult with Molex or a qualified engineer to determine the maximum wire size and ensure that the connector's performance and reliability are not compromised.
  • The 15800109 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). Exceeding this temperature range may affect the connector's performance and reliability.
