150224J400FE - Cornell Dubilier

Description: Cornell-Dubilier 220nF Polyester Film Capacitor 400V dc ±5%

Download 150224J400FE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

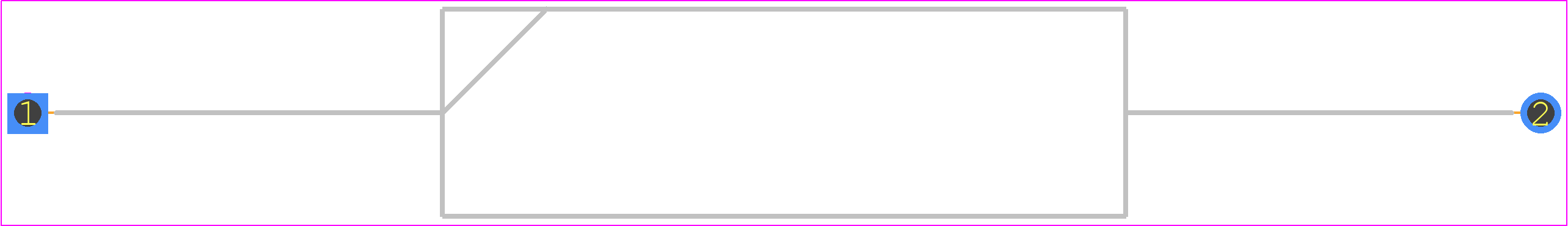

150224J400FE - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints
150224J400FE - Cornell Dubilier PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 8.5X28
click to zoom
3D Models
150224J400FE - Cornell Dubilier - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 8.5X28
click to zoom

150224J400FE Details

  • Manufacturer Part Number:

    150224J400FE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.60

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    6

  • Capacitance:

    0.22 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Diameter:

    8.5 mm

  • Dielectric Material:

    POLYESTER

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.01 mA

  • Length:

    28 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    BULK

  • Polarity:

    NON-POLARIZED

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    400 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

150224J400FE Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 150224J400FE is 260°C (500°F) for 10 seconds or less.
  • Yes, the 150224J400FE capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The derating curve for the 150224J400FE capacitor can be found in the Cornell Dubilier Electronics Inc application notes or by contacting their technical support team.
  • Yes, the 150224J400FE capacitor is designed to withstand high-vibration environments, but it's recommended to consult with Cornell Dubilier Electronics Inc's technical support team for specific vibration testing and validation.
  • The shelf life of the 150224J400FE capacitor is typically 2 years from the date of manufacture, but it's recommended to follow proper storage and handling procedures to ensure the capacitor's performance and reliability.
