150240-6002-RB - 3M

Description: 40 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Download 150240-6002-RB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
150240-6002-RB - 3M - PCB symbol
click to zoom
PCB Footprints

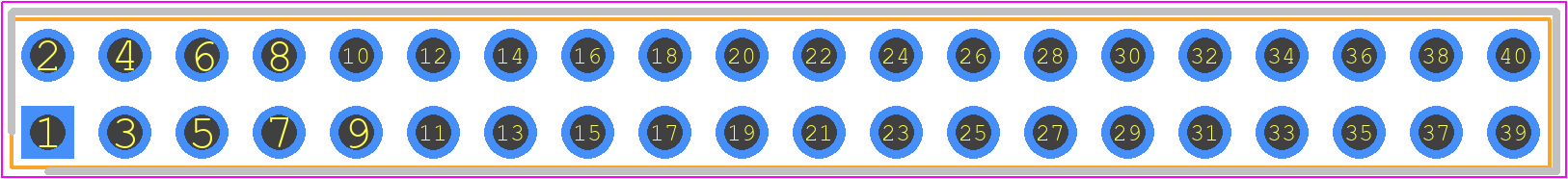

150240-6002-RB - 3M PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - 150240-6002-RB
click to zoom
3D Models
150240-6002-RB - 3M - 3D model - Header, Receptacle - Straight PTH Box - 150240-6002-RB
click to zoom

150240-6002-RB Details

  • Manufacturer Part Number:

    150240-6002-RB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    8

  • Additional Feature:

    3M

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (150)

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

150240-6002-RB Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 150240-6002-RB connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
  • The 150240-6002-RB connector is designed to operate in a temperature range of -40°C to 105°C (-40°F to 221°F) and can withstand humid environments. However, it's essential to follow the manufacturer's guidelines for environmental testing and to ensure proper sealing and protection of the connector.
  • The 150240-6002-RB connector is designed to be compatible with other 3M Interconnect products. However, compatibility with other manufacturers' mating connectors is not guaranteed and may require additional testing and validation.
  • The recommended wire size for the 150240-6002-RB connector is 24-18 AWG (0.25-1.0 mm²). It's recommended to use wires with a temperature rating of at least 105°C (221°F) and insulation that meets the requirements of the application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

150240-6002-RB Overview

Use the download button to access the 150240-6002-RB schematic symbol, PCB footprint, and 3D model.
