1510240021 - Molex

1510240021 Details

• Manufacturer Part Number:

  1510240021

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Molex

• YTEOL:

  1

• Board Mounting Option:

  HOLE 0.096

• Body Breadth:

  0.256 inch

• Body Depth:

  0.563 inch

• Body Length:

  5.709 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  CARD EDGE CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  10 mΩ

• Contact Style:

  CENTRONIC

• Dielectric Withstanding Voltage:

  500VAC V

• Durability:

  5 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  106.8 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYAMIDE

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.033 inch

• Mating Contact Row Spacing:

  0.062 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LATCH

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

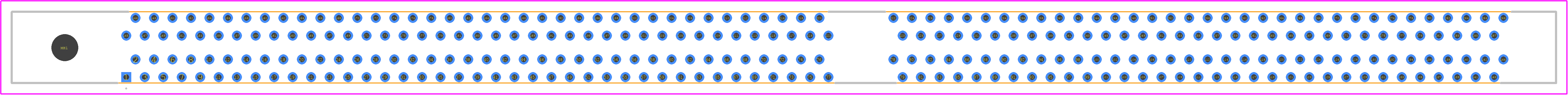

• Number Of PCB Rows:

  4

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  1.6 mm

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  0.75 A

• Reference Standard:

  CSA; UL

• Terminal Length:

  0.073 inch

• Terminal Pitch:

  1.7 mm

• Termination Type:

  PRESS FIT

• Total Number of Contacts:

  288

• UL Flammability Code:

  94V-0
