The recommended torque for the screw terminals is 0.5-1.0 Nm (4.4-8.8 in-lbs).
Yes, the 152-3425 connector is designed for outdoor use and can withstand environmental conditions such as rain, snow, and extreme temperatures.
The maximum wire size that can be used with the 152-3425 connector is 14 AWG (2.08 mm²).
The 152-3425 connector is rated for up to 600V AC/DC, making it suitable for high-voltage applications.
Yes, the 152-3425 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
152-3425 Overview

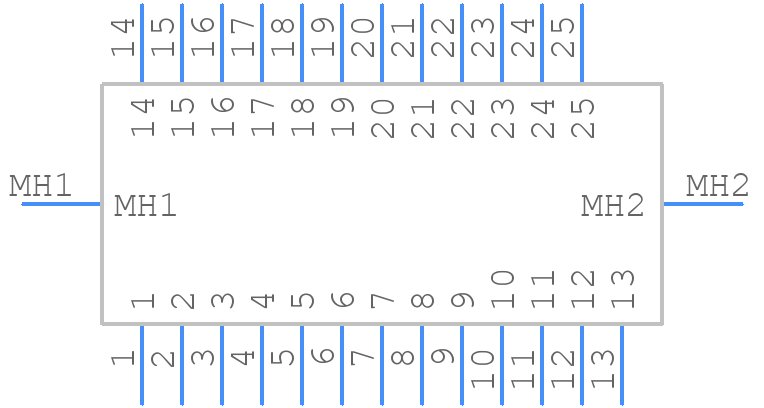

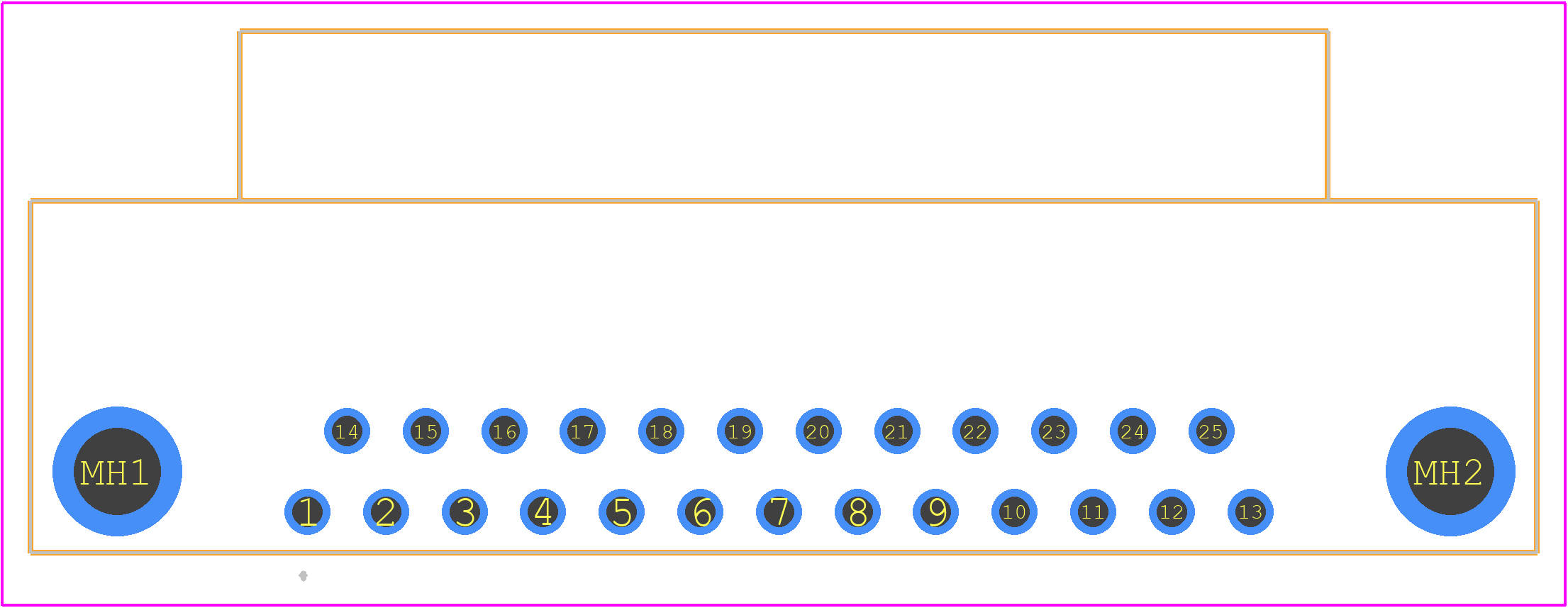

Use the download button to access the 152-3425 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 152-3,
or try a keyword search, such as D Type Connectors
