15210402401000 - HARTING

Description: har-flex straight female 6.25mm, 40pin, PL1, with through hole hold downs, 220pcs

Download 15210402401000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

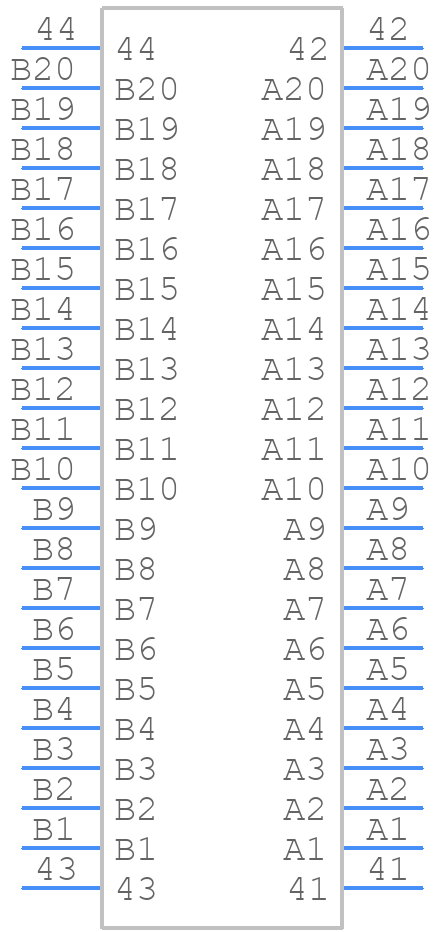

15210402401000 - HARTING - PCB symbol
click to zoom
PCB Footprints

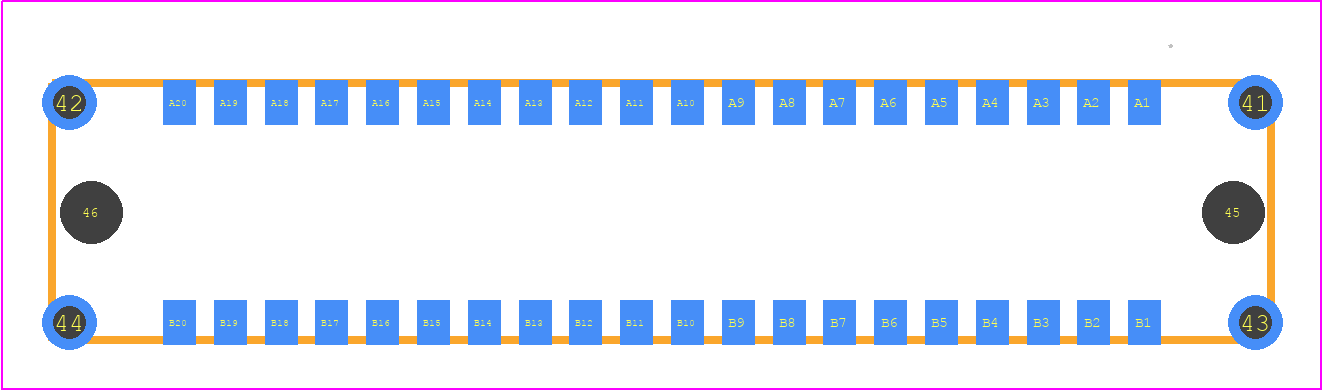

15210402401000 - HARTING PCB footprint - Other - Other - 15210402401000
click to zoom
3D Models
15210402401000 - HARTING - 3D model - Other - 15210402401000
click to zoom

15210402401000 Details

  • Manufacturer Part Number:

    15210402401000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.75

  • Connector Type:

    BOARD STACKING CONNECTOR

15210402401000 Frequently Asked Questions (FAQs)

  • According to HARTING's application notes, the recommended torque value for the screw locks on the 15210402401000 connector is 0.5 Nm to 1.5 Nm.
  • Yes, the 15210402401000 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat. 2 standard for vibration resistance.
  • The 15210402401000 connector has an IP67 rating, making it suitable for outdoor use and exposure to harsh environments, including dust and water ingress.
  • The 15210402401000 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • Yes, the 15210402401000 connector is designed to accommodate cables with a range of diameters, from 2.5 mm to 6.5 mm.
