- Part Number 1532259-2
- Manufacturer TE Connectivity
- Pin Count 17
- Part Category Connector
- Package Category Other
- Footprint Name Other - 1532259-2-3
- Released Date Oct 11, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
1532259-2 Details
-
Manufacturer Part Number:
1532259-2
-
Brand Name:
Microdot
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
TE Connectivity
-
YTEOL:
8.57
-
Body/Shell Style:
RECEPTACLE
-
Cable Types:
SOLID
-
Connector Type:
D MICROMINIATURE CONNECTOR
-
Contact Design:
PREASSEM CONN
1532259-2 Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
-
Yes, the 1532259-2 connector is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in industrial or automotive applications.
-
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with the use of adapters or by consulting with TE Connectivity's technical support team.
-
The operating temperature range for the 1532259-2 connector is -40°C to 125°C (-40°F to 257°F).
-
The 1532259-2 connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to consult with TE Connectivity's technical support team for specific environmental requirements.
Trust Checks
Expert Contribution
System Verified
Community Approved
1532259-2 Overview

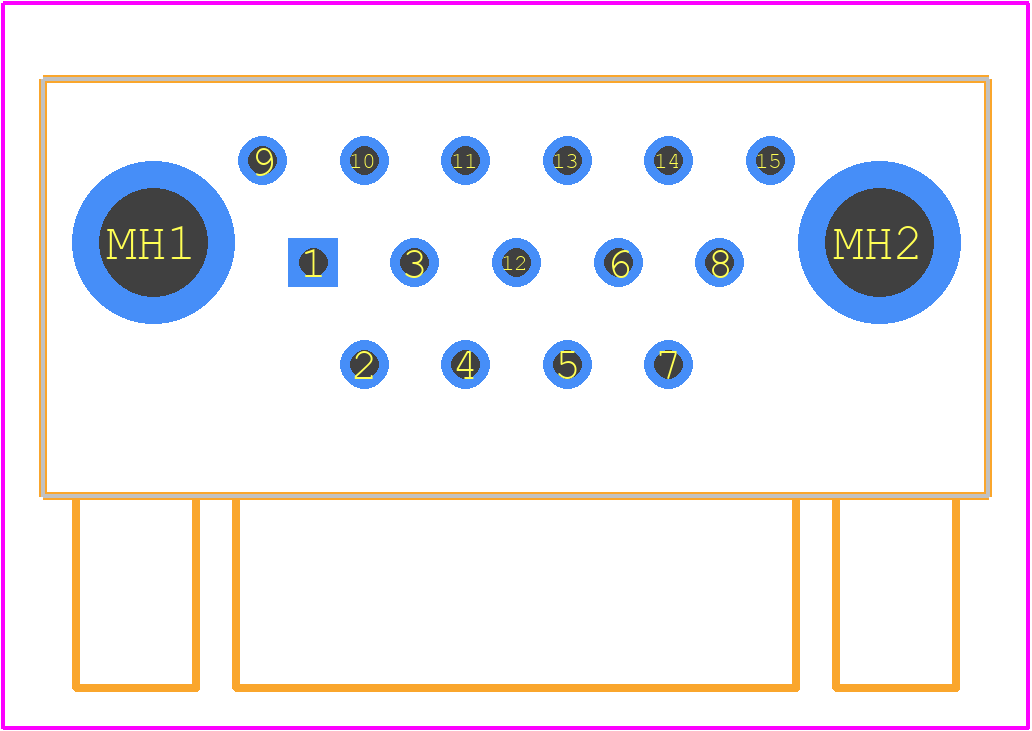

Use the download button to access the 1532259-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15322,
or try a keyword search, such as D Type Connectors
