1534531-1 - TE Connectivity

Description: Body Features: Connector & Keying Code A | Primary Product Color Black | Configuration Features: Number of Positions 38 | Number of Sections 2 | PCB Mount Orientation Horizontal | Number of Rows 2 | Contact Features: Contact Mating Area Plating Material Tin | Contact Size .63mm | Contact Size 2.8mm | Contact Type Tab | Contact Size 4.8mm | Contact Size 1.5mm | Dimensions: Connector Width 3.814 INCH | Connector Length 32.3 MM | PCB Thickness (Recommended) 1.6 MM | PCB Thickness (Recommended) .063 INCH | Conn

Download 1534531-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

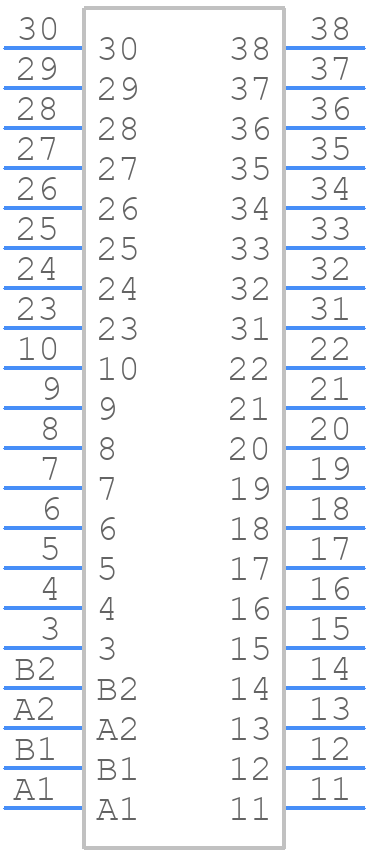

1534531-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

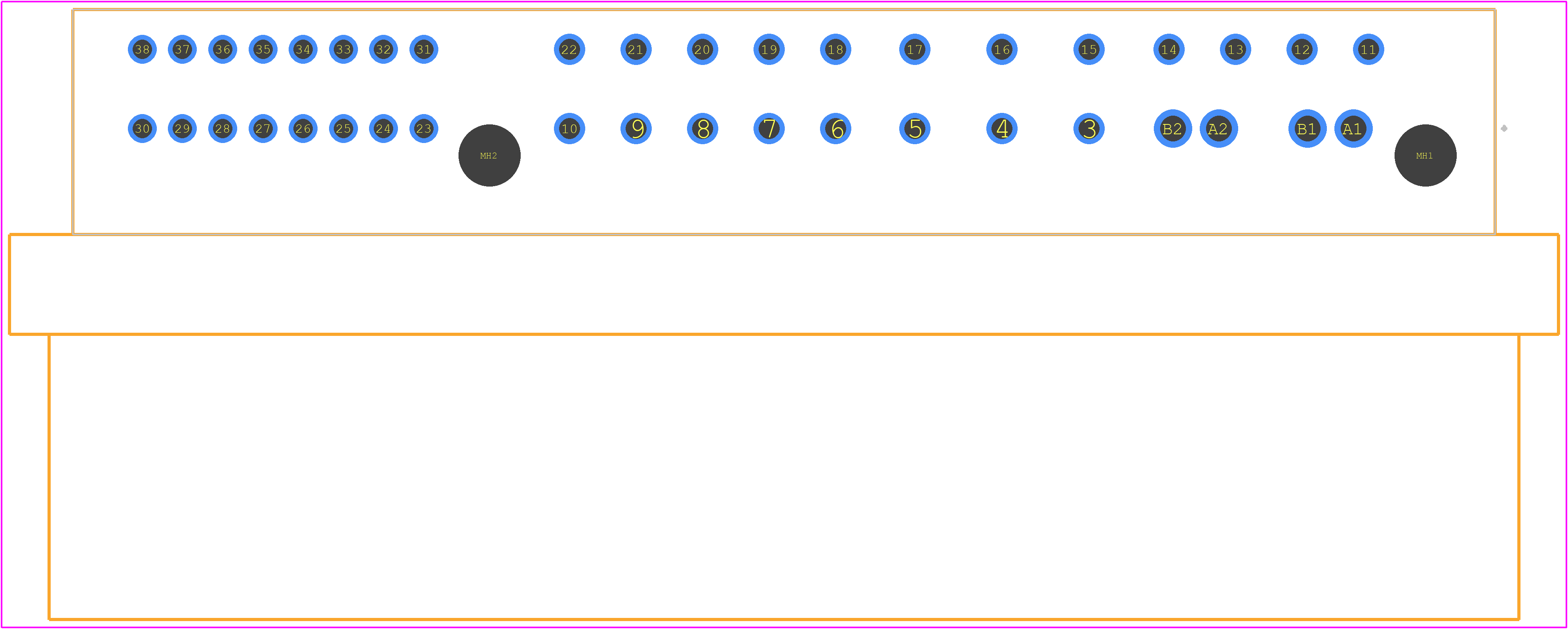

1534531-1 - TE Connectivity PCB footprint - Other - Other - 1534531-1-1
click to zoom
3D Models
1534531-1 - TE Connectivity - 3D model - Other - 1534531-1-1
click to zoom

1534531-1 Details

  • Manufacturer Part Number:

    1534531-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    3.814 inch

  • Body Length:

    1.26 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

1534531-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 1534531-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 1534531-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 1534531-1 connector has a sealed design, making it suitable for outdoor or harsh environments. However, it's crucial to ensure proper sealing and protection from moisture, dust, and other environmental factors.
  • The 1534531-1 connector is designed for specific wire gauges and types. Consult TE Connectivity's documentation or contact their technical support to determine the compatibility of the connector with your specific wire requirements.
