Part Image

1534630 - Phoenix Contact

Description: SACC-DSIV-M12FSD-4CON-L90 - Device connector rear mounting, 4-position, Socket, angled, M12, D-coding, Wave soldering

Download 1534630 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1534630 - Phoenix Contact - PCB symbol
click to zoom

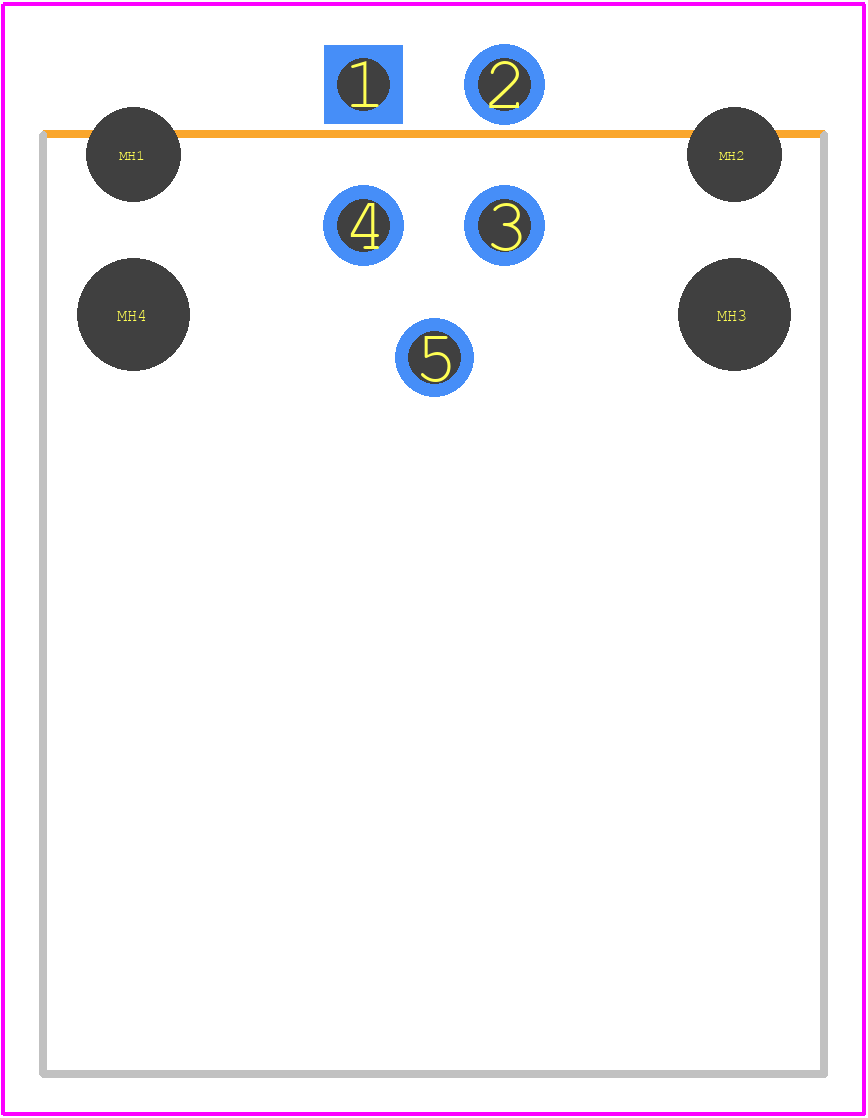

PCB Footprints
1534630 - Phoenix Contact PCB footprint - Other - Other - 1534630
click to zoom
3D Models
1534630 - Phoenix Contact - 3D model - Other - 1534630
click to zoom

1534630 Details

  • Manufacturer Part Number:

    1534630

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    SHIELDED

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

1534630 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 1534630 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing and validation for specific high-vibration applications.
  • The 1534630 connector has a IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to ensure proper sealing and protection against moisture and contaminants.
  • Yes, the 1534630 connector is designed to be compatible with other Phoenix Contact products and can be used with third-party components that meet the relevant industry standards.
  • The 1534630 connector is rated for operation in temperatures ranging from -40°C to 125°C, depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1534630 Overview

Use the download button to access the 1534630 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15346, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
