154256 footprint, schematic symbol and 3D model by TE Connectivity

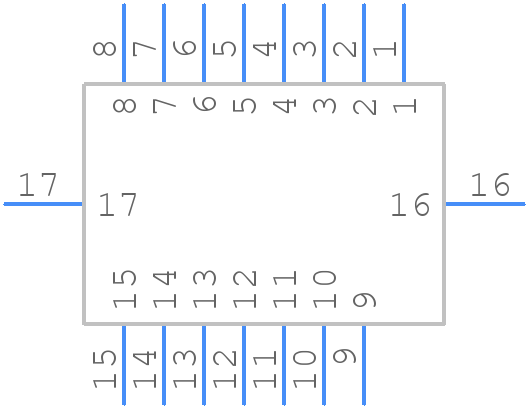

Symbol

click to zoom

PCB Footprints

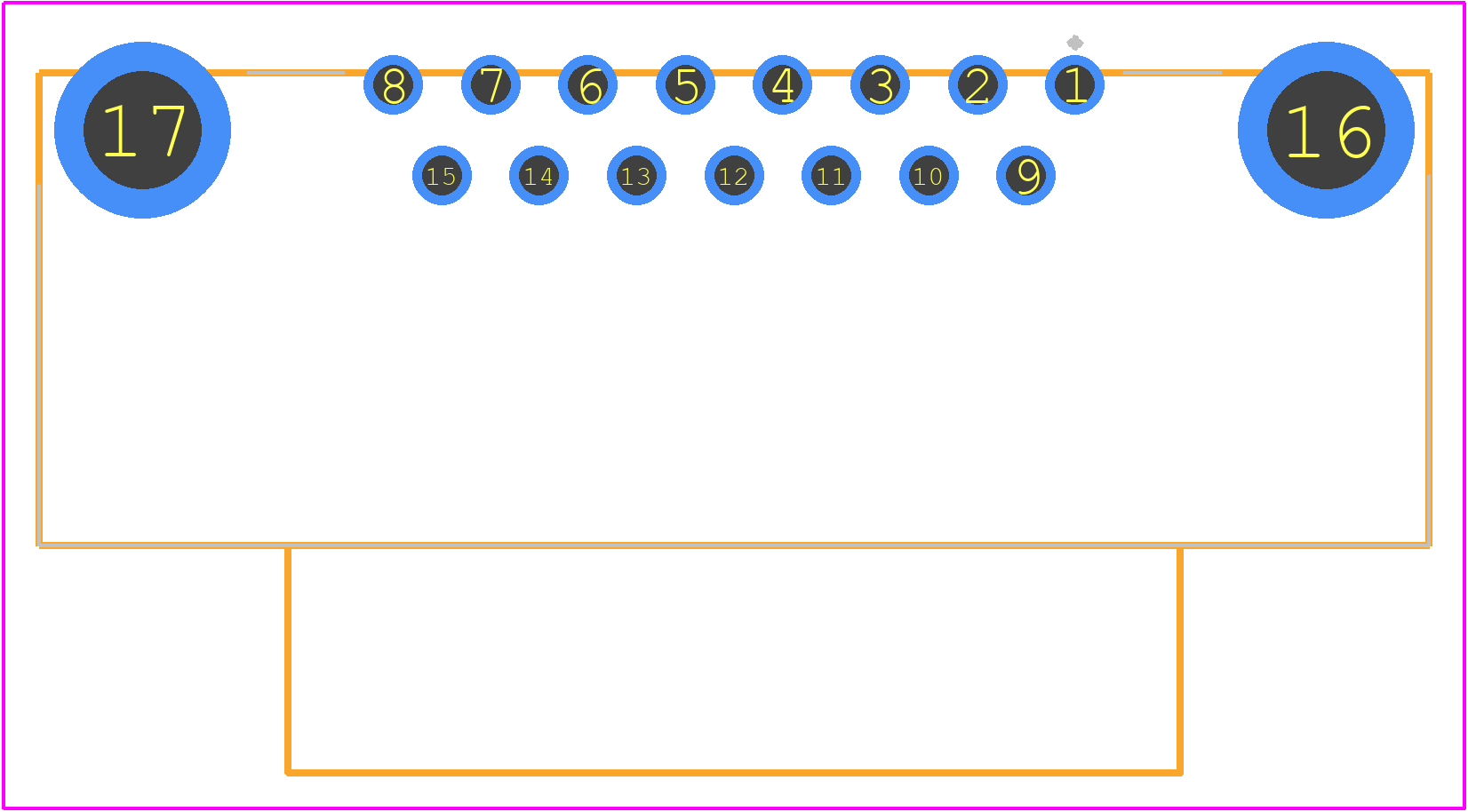

154256 - TE Connectivity PCB footprint - Other - Other - 154256-3

click to zoom

Datasheet
Stock & Prices Price & Stock for 154256
Part Number 154256
Manufacturer TE Connectivity
Pin Count 17
Part Category Connector
Package Category Other
Footprint Name Other - 154256-3
Released Date Oct 3, 2018
Last Modified Date Sep 30, 2024 6:54 PM UTC
Pinout / Pin List Click Here (Member Only)

154256 Details

Manufacturer Part Number:
154256
Manufacturer:
TE Connectivity

Trust Checks

Expert Contribution

System Verified

Community Approved

154256 Overview

Use the download button to access the 154256 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 15425, or try a keyword search, such as D Type Connectors
