1546927-6 - TE Connectivity

Description: Body Features: Primary Product Color Black | Barrier Strip Style Tri-Barrier | Product Orientation Vertical | Configuration Features: Number of Positions 6 | Number of Rows 1 | Number of Levels 1 | Contact Features: PCB Contact Termination Area Plating Material Tin | Contact Current Rating (Max) 15 AMP | Contact Base Material Brass | Dimensions: Wire Size 22 – 14 AWG | Wire Size .3 – 2 MMSQ | Product Length 50.72 MM | Product Length 1.997 INCH | Electrical Characteristics: Operating Voltage 300 V | Hous

Download 1546927-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1546927-6 - TE Connectivity - PCB symbol
click to zoom

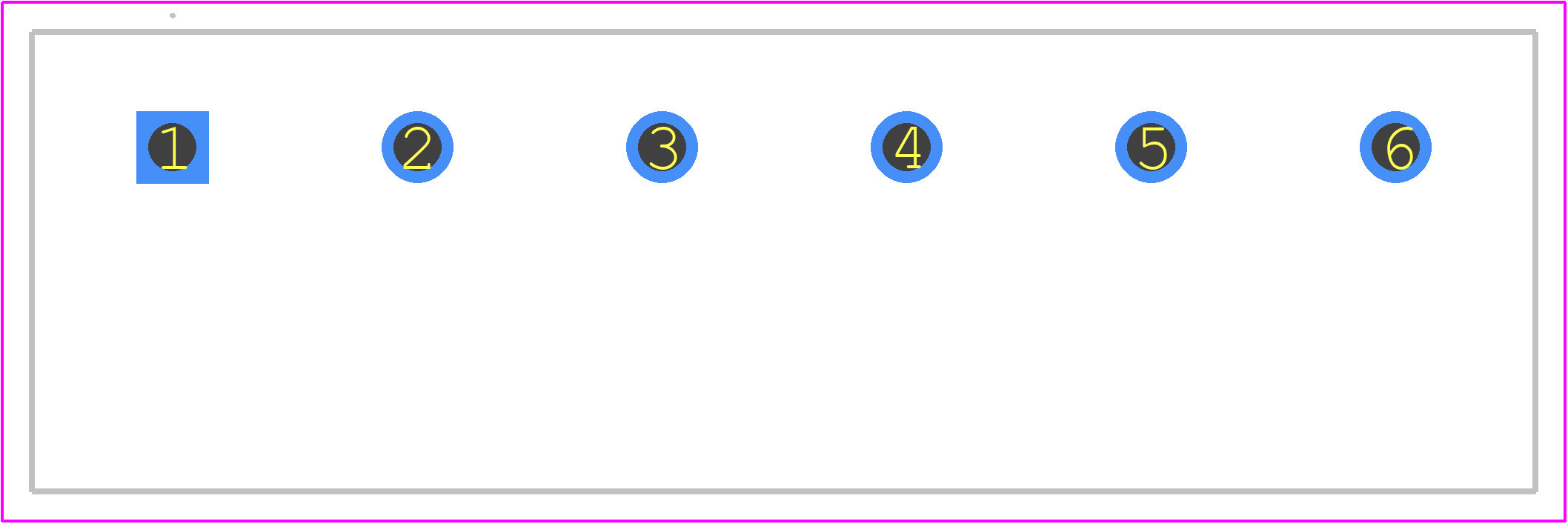

PCB Footprints
1546927-6 - TE Connectivity PCB footprint - Other - Other - 1546927-6-2
click to zoom
3D Models
1546927-6 - TE Connectivity - 3D model - Other - 1546927-6-2
click to zoom

1546927-6 Details

  • Manufacturer Part Number:

    1546927-6

  • Brand Name:

    Buchanan

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.81

  • Additional Feature:

    THERMOPLASTIC, UL 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2 mm2

  • Wire Gauge:

    14 AWG

1546927-6 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1546927-6 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The operating temperature range for the 1546927-6 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this range to maintain its performance and reliability.
  • The 1546927-6 connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended for use in applications with exposure to harsh chemicals or extreme environmental conditions.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 1546927-6 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and to follow proper wire stripping and termination procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1546927-6 Overview

Use the download button to access the 1546927-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15469, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
