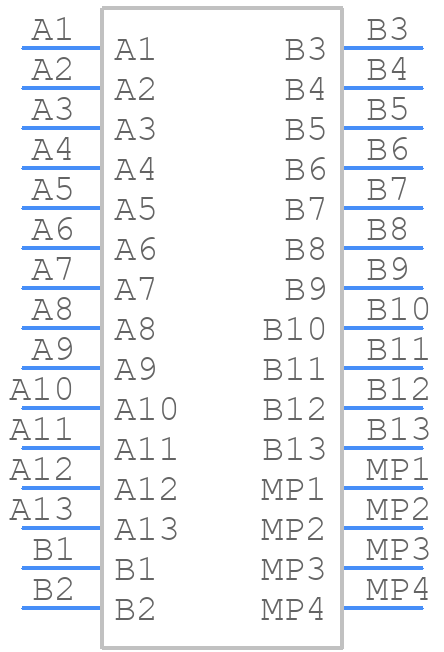

154764-E - TE Connectivity

154764-E Details

• Manufacturer Part Number:

  154764-E

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  12 Weeks, 4 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  9.4

• Board Mounting Option:

  LOCATING POST

• Body Breadth:

  0.394 inch

• Body Depth:

  0.167 inch

• Body Length:

  0.85 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  MALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• DIN Conformance:

  NO

• EMI Shielded:

  NO

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• MIL Conformance:

  NO

• Mains Connector Rating:

  1.3A

• Mating Contact Row Spacing:

  0.05 inch

• Mixed Contacts:

  NO

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• Panel Mount:

  NO

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  1.3 A

• Reference Standard:

  UL

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  26

• UL Flammability Code:

  94V-0
